ProDig Pro-Shear
Details

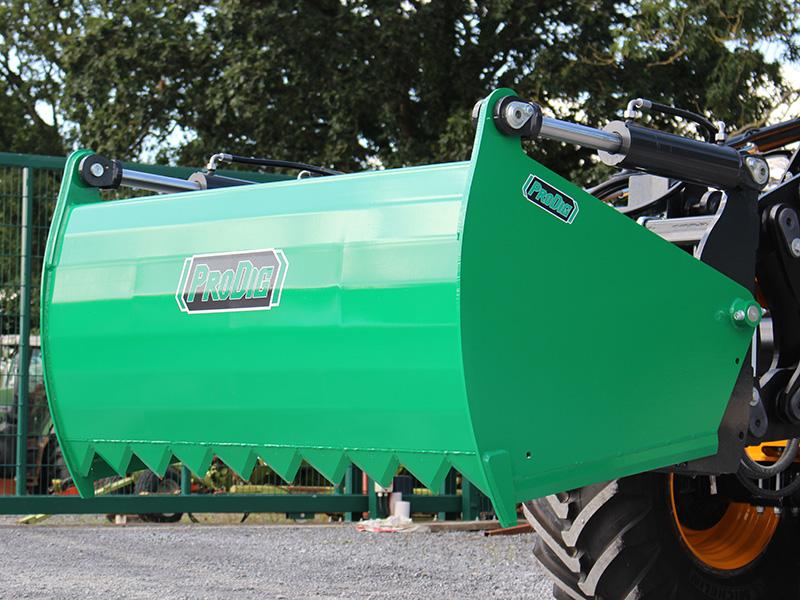

The Pro Shear is one of ProDig flagship products and has been tried and tested in the toughest environments around the world over the last decade. It is manufactured with heat treated blades & 35mm Hardox tines to reduce waste and down time due to breakages.
Full Details
The Pro Shear is one of ProDig flagship products and has been tried and tested in the toughest environments around the world over the last decade. It is manufactured with heat treated blades & 35mm Hardox tines to reduce waste and down time due to breakages.
- Shear grabs are available in widths from 1.3m to 2.2m.
- Built using high tensile steel in fork and grapple construction.

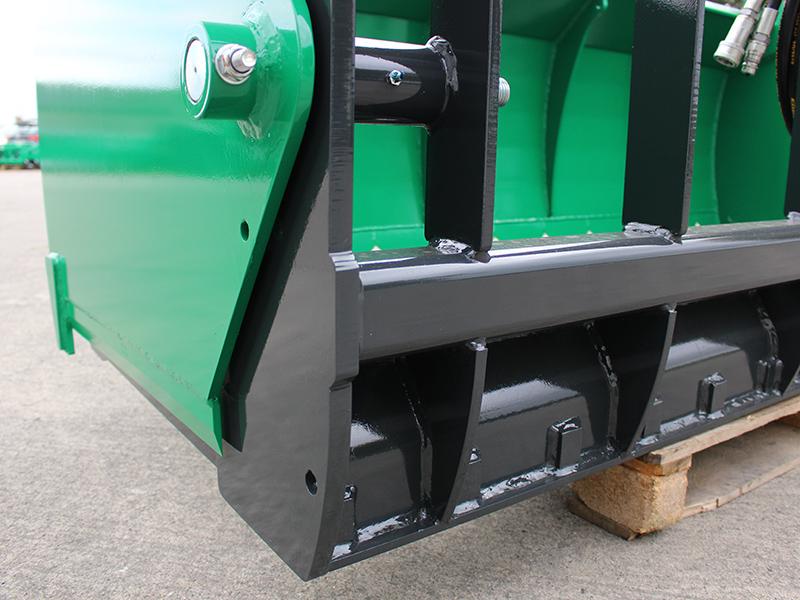

- Manufactured with 35mm wide, 885mm long Hardox tines.
- Hardox tines are manufactured with replaceable wear tips meaning the tine never has to be replaced.
- Heat treated, hardened cutting blades as standard for superior cut and long life.
- 45mm pivot pins fitted with wrapped PTFE lined bearing bushings.
- 40mm ram pins fitted with glacier acetal lined bushings
- All pivot points fitted with replaceable, greaseable bushings.

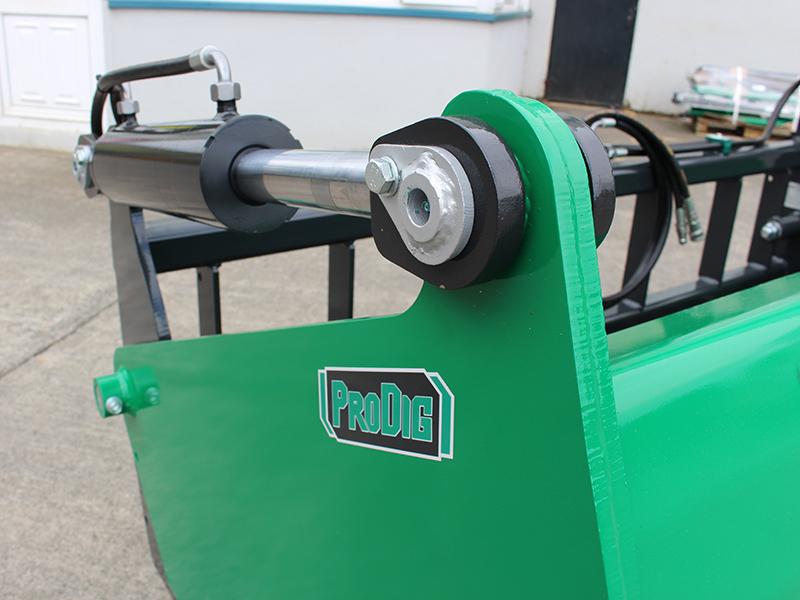

- Nickel chrome plated hydraulic cylinders for long life in an aggressive environment.

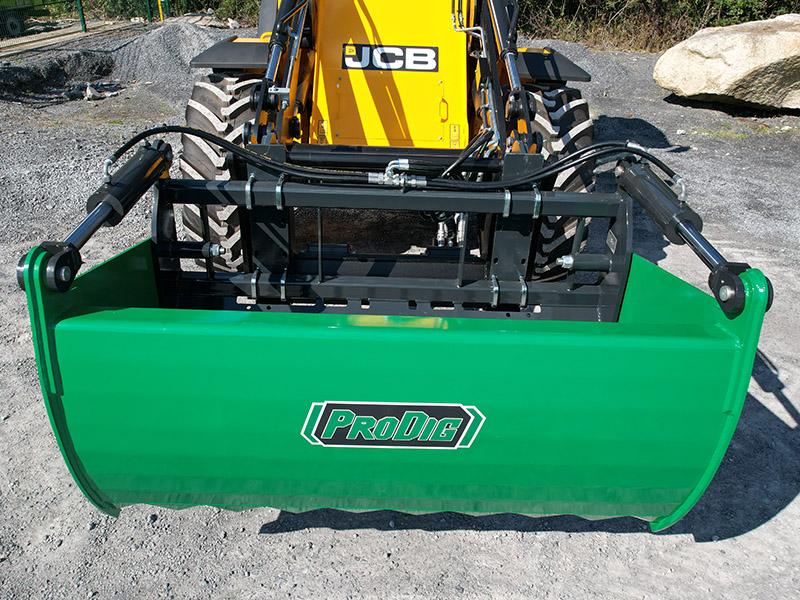

- Bolt on hitch brackets to suit all machines.
- Optional pressure relief valve for machines in excess of 200 Bar hydraulic pressure.
Technical Data
| Model | SG 1300 | SG 1500 | SG 1800 | SG 2200 | |
| Weight, without Hitch (kg) | 540 | 583 | 673 | 776 | |
| Weight of push off system (kg) | 48 | 48 | 48 | 48 | |
| Weight, including push off system (kg) | 588 | 631 | 721 | 824 | |
| Total width (mm) | A | 1420 | 1620 | 1920 | 2320 |
| Total depth (mm) | B | 1100 | 1100 | 1100 | 1100 |
| Total height (mm) | C | 1040 | 1040 | 1040 | 1040 |
| Max block width (mm) | D | 1300 | 1500 | 1800 | 2200 |
| Max block height (mm) | E | 800 | 800 | 800 | 800 |
| Max height (open implement) (mm) | F | 1440 | 1440 | 1440 | 1440 |
| Capacity (m3) | 0.92 | 1.06 | 1.28 | 1.56 | |
| Number of cylinders x Diameter (mm) | 2 x 90 Bore | 2 x 90 Bore | 2 x 100 Bore | 2 x 100 Bore | |
| *Maximum working pressure (BAR) | 200 BAR | 200 BAR | 200 BAR | 200 BAR | |
| **Required oil pressure (BAR) | 170 BAR | 170 BAR | 170 BAR | 170 BAR | |
| **Required lifting (kg) (silage at 800kg/m3) | 1276 | 1431 | 1697 | 2024 | |
| Number of tines | 9 | 10 | 12 | 15 | |
| Tine Thickness (mm) | 35 | 35 | 35 | 35 | |
| Tine Length (mm) | 880 | 880 | 880 | 880 | |
| Distance between tines (mm) | 116 | 122 | 121 | 116 |
All measurements approx (±5mm, ±5kg), Weight excludes brackets as these vary.
*Machines operating above 200 BAR will require a pressure relief valve.
**This information depends on the type of silage and serves as guidance only.
Models
| PRODUCT | PRODUCT CODE |
| Shear Grab (1.3m) | SG 1300 |
| Shear Grab (1.5m) | SG 1500 |
| Shear Grab (1.8m) | SG 1800 |
| Shear Grab (2.2m) | SG 2200 |
| Single Cylinder Centre Push Off System | SG-PO-01 |
| 1.3m Maize Infill Panel | SG-1300-F-MESH |
| 1.3m Maize Infill Panel (No Centre for Push Off) | SG-1300-PO-MESH |
| 1.5m Maize Infill Panel | SG-1500-F-MESH |
| 1.5m Maize Infill Panel (No Centre for Off ) | SG-1500-PO-MESH |
| 1.8m Maize Infill Panel | SG-1800-F-MESH |
| 1.8m Maize Infill Panel (No Centre for Push Off) | SG-1800-PO-MESH |
| 2.2m Maize Infill Panel | SG-2200-F-MESH |
| 2.2m Maize Infill Panel (No Centre for Push Off) | SG-2200-PO-MESH |
| Tractor Bolt on Brackets | TBB 100 |
| Industrial Bolt on Brackets | IDBB 100 |
| Replacement weld on Hardox wear tips for tines (each) | HX TIP |
Extras
Single Cylinder Centre Push Off System
Maize Infill Panel
