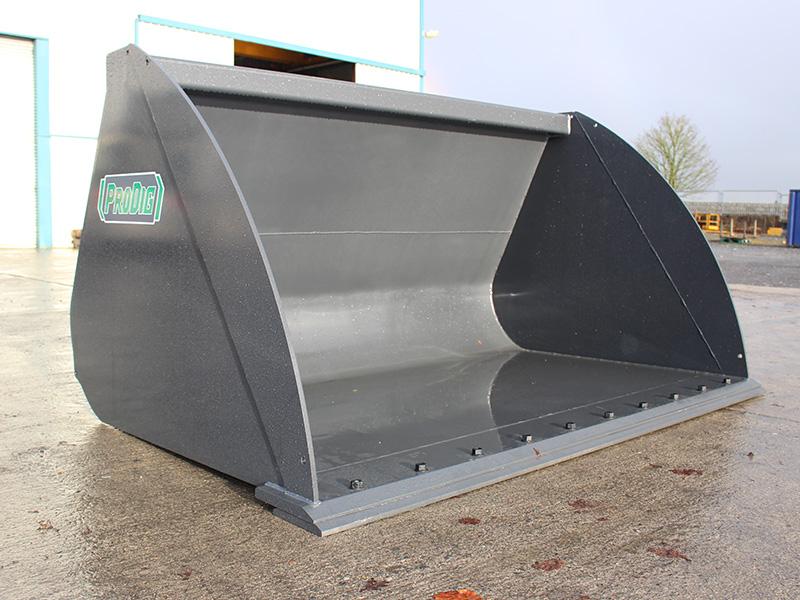

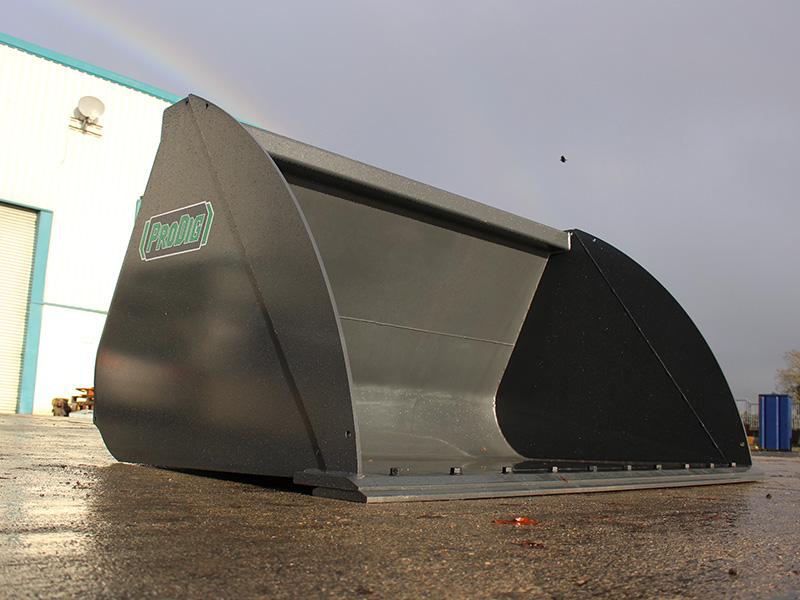

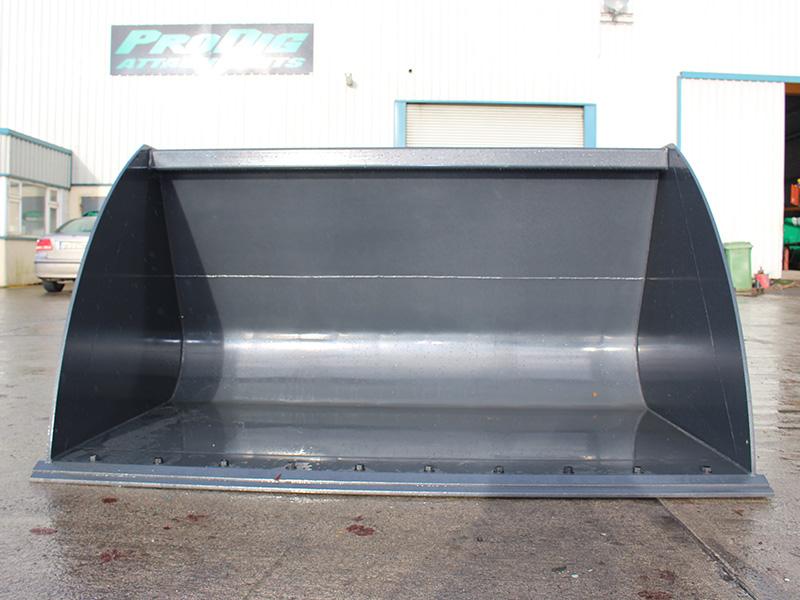

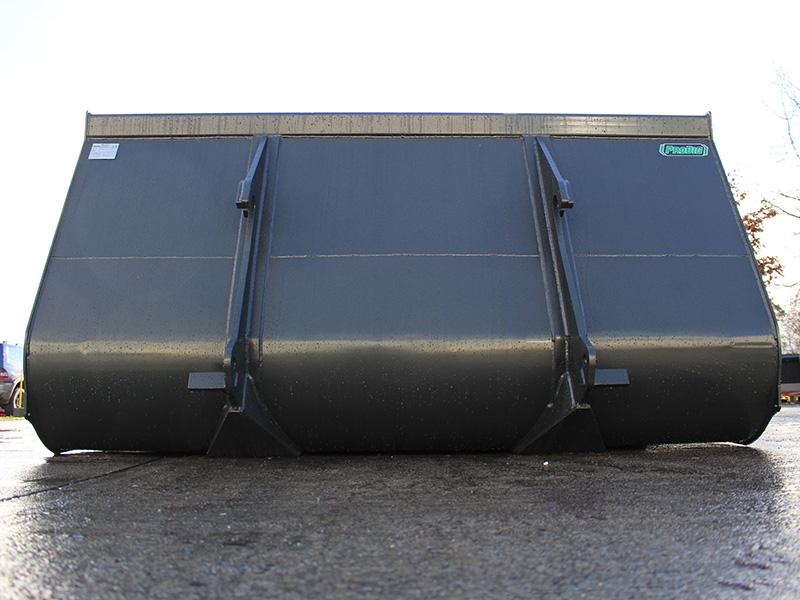

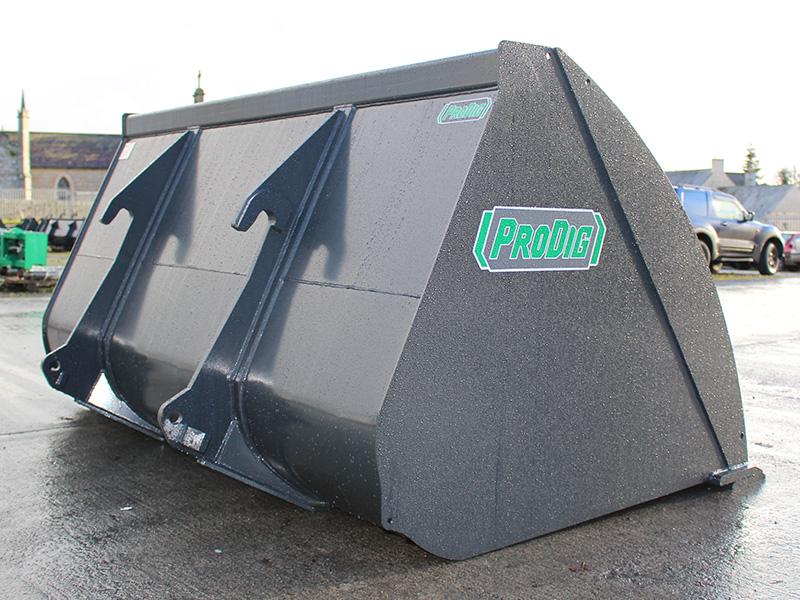

ProDig Grain Bucket
Details
- Grain buckets available in capacity from 1.9m3 to 4.9m3.
- Designed to handle bulk materials such as grain, woodchip, etc.
- Pressed steel curved shell retains less material when emptied.

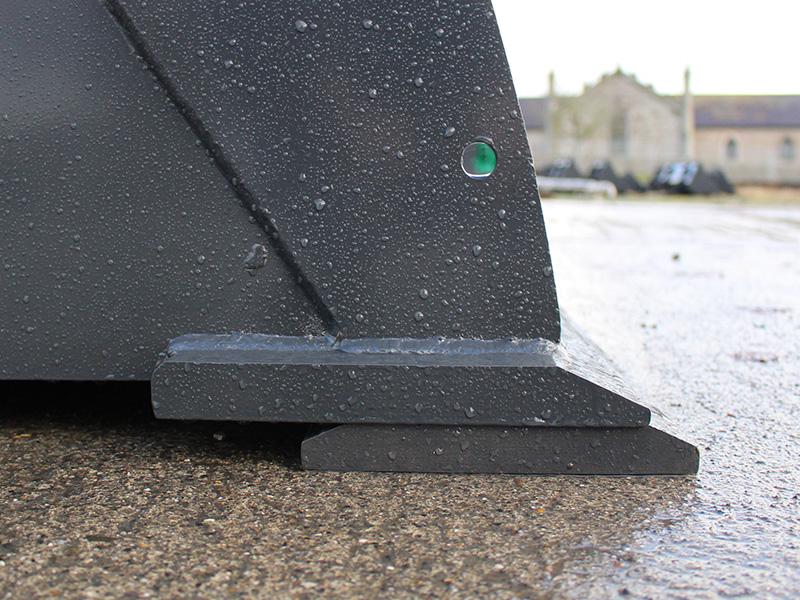

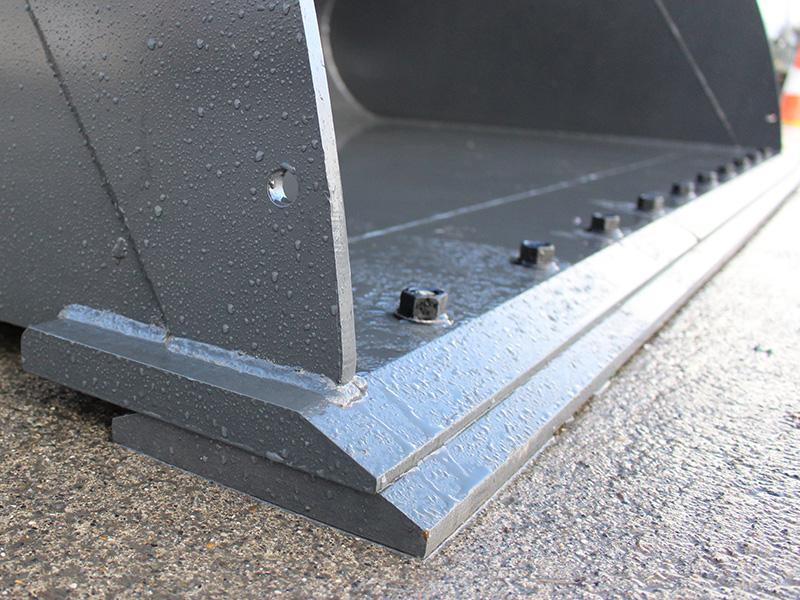

- 400 grade hardened steel cutting edge as standard.
- 20mm x 25mm cutting edge from 1.9m3 to 2.5m3 and 250mm x 30mm cutting edge from 2.7m3 to 4.9m3
- 12mm bottom wear straps for superior structural integrity.
- Curved 15mm side wear leading edge to hold more material as standard.
- Crowd back to water level on most machines.
- Max material density of 1000kg/m3
- Not to be used with lift/ breakout force from the loader to loosen material – loose free flowing material only.
Full Details
- Grain buckets available in capacity from 1.9m3 to 4.9m3.
- Designed to handle bulk materials such as grain, woodchip, etc.
- Pressed steel curved shell retains less material when emptied.
- 400 grade hardened steel cutting edge as standard.
- 20mm x 25mm cutting edge from 1.9m3 to 2.5m3 and 250mm x 30mm cutting edge from 2.7m3 to 4.9m3
- 12mm bottom wear straps for superior structural integrity.
- Curved 15mm side wear leading edge to hold more material as standard.
- Crowd back to water level on most machines.
- Max material density of 1000kg/m3
- Not to be used with lift/ breakout force from the loader to loosen material – loose free flowing material only.
Technical Data
| CODE | capacity M3 | width (mm) | Height (mm) | Depth (mm) | Weight (kg) |
| GB 1.9 | 1.9 | 2280 | 1060 | 1265 | 540 |
| GB 2.1 | 2.1 | 2500 | 1060 | 1265 | 570 |
| GB 2.3 | 2.3 | 2750 | 1060 | 1265 | 600 |
| GB 2.5 | 2.5 | 2995 | 1060 | 1265 | 640 |
| GB 2.7 | 2.7 | 2280 | 1300 | 1560 | 745 |
| GB 3.0 | 3 | 2500 | 1300 | 1560 | 820 |
| GB 3.3 | 3.3 | 2750 | 1300 | 1560 | 900 |
| GB 3.6 | 3.6 | 2995 | 1300 | 1560 | 980 |
| GB 4.0 | 4 | 2500 | 1505 | 1770 | 1004 |
| GB 4.5 | 4.5 | 2750 | 1505 | 1770 | 1055 |
| GB 4.9 | 4.8 | 3000 | 1505 | 1770 | 1112 |
All measurements approx (±5mm, ±5kg)
Weight may differ brackets as these vary,
Models
| PRODUCT | PRODUCT CODE |
| Grain Bucket 1.9m3 (2.28m) | GB 1.9 |
| Grain Bucket 2.1m3 (2.5m) | GB 2.1 |
| Grain Bucket 2.3m3 (2.75m) | GB 2.3 |
| Grain Bucket 2.5m3 (3.0m) | GB 2.5 |
| Grain Bucket 2.7m3 (2.28m) | GB 2.7 |
| Grain Bucket 3.0m3 (2.5m) | GB 3.0 |
| Grain Bucket 3.3m3 (2.75m) | GB 3.3 |
| Grain Bucket 3.6m3 (3.0m) | GB 3.6 |
| Grain Bucket 4.0m3 (2.5m) | GB 4.0 |
| Grain Bucket 4.5m3 (2.75m) | GB 4.5 |
| Grain Bucket 4.9m3 (3.0m) | GB 4.9 |
| Bolt on cutting edge 200x25mm (per meter) | BOCE 200×25 |
| Bolt on cutting edge 250x30mm (per meter) | BOCE 250×30 |
