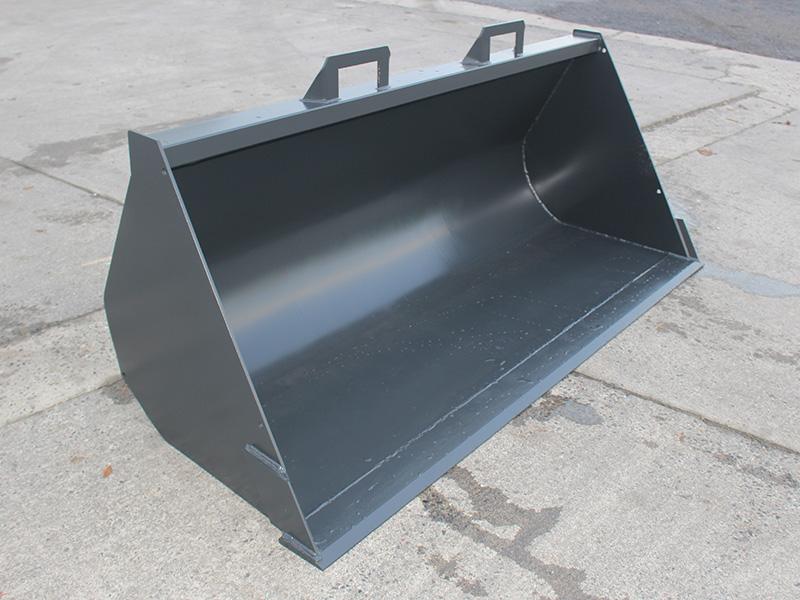

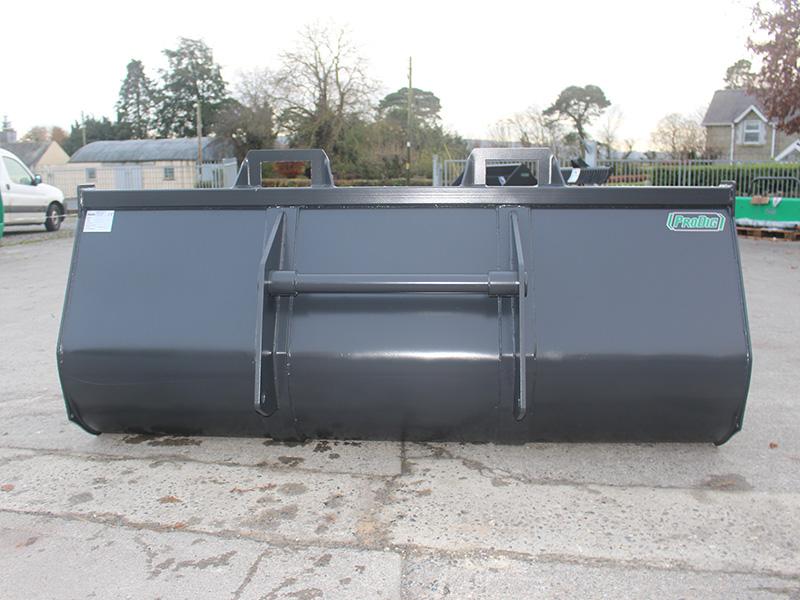

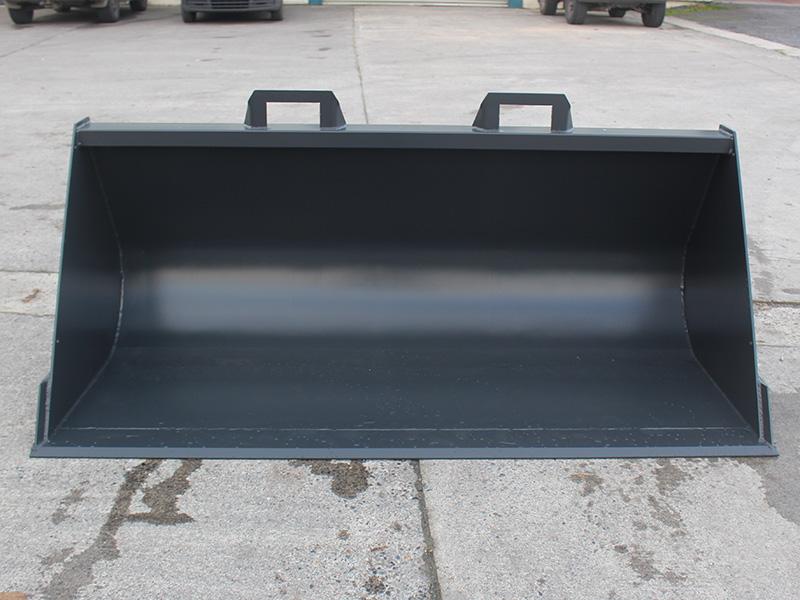

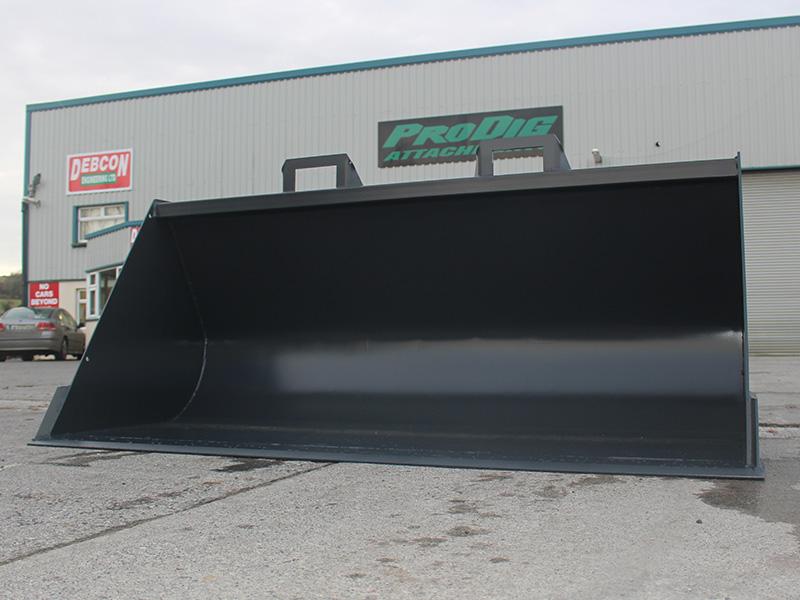

ProDig General Propose Loader Bucket
Details
- Tele-Handler/Articulated loader buckets available in capacity from 0.8m3 to 1.7m3.
- Designed for general use such as loading, re-handling, etc.
- Manufactured with S355 structural grade plate and 120 x 60 box section.
- Pressed steel curved shell retains less material when emptied.

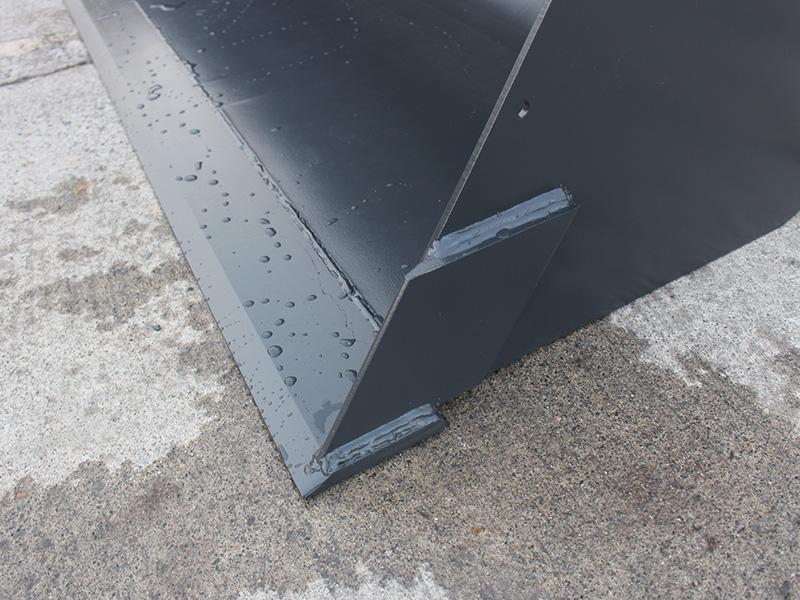

- 400 grade hardened 150mm x 20mm (GP0.8 & GP1.1) and 200mm x 25mm (GP1.5 & GP1.7)steel cutting edge as standard.
- 10mm straps around shell for superior structural integrity.
- Optional heavy duty version of each model available and also bolt on edge cutting available.
- Max machine lifting capacity: 5000kg

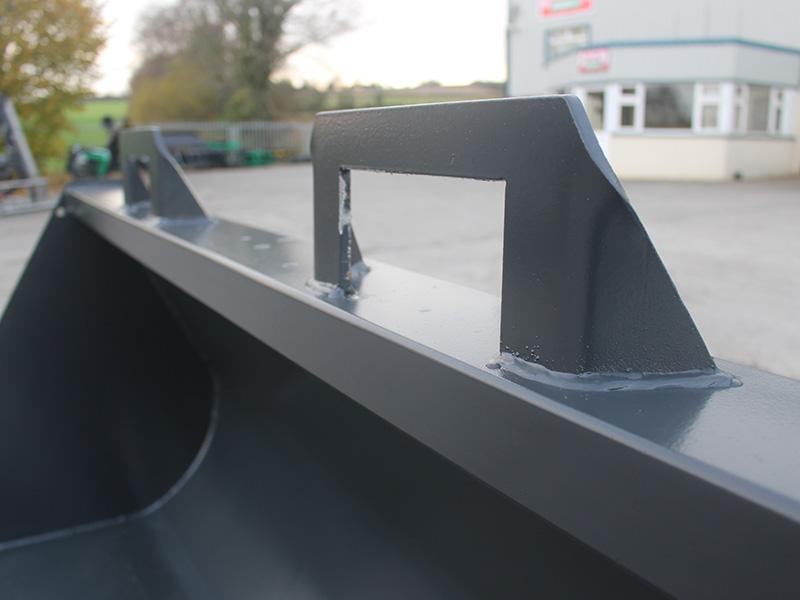

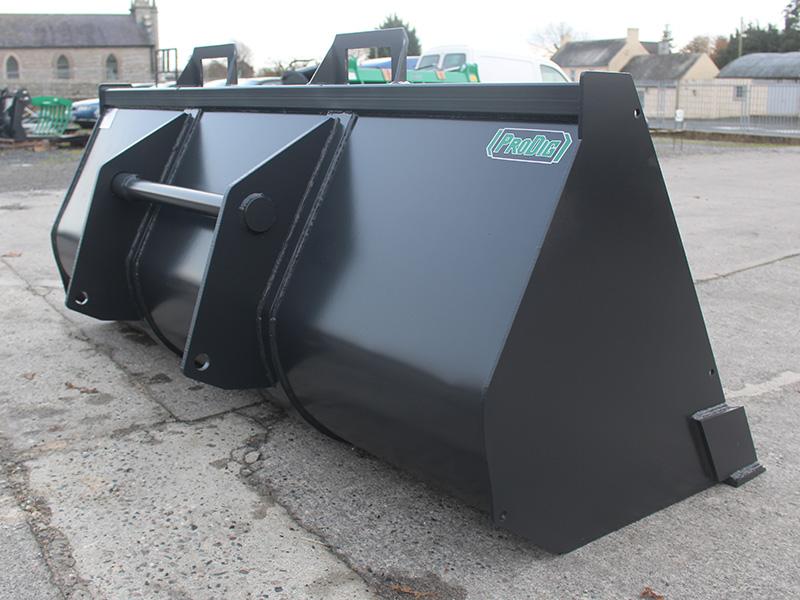

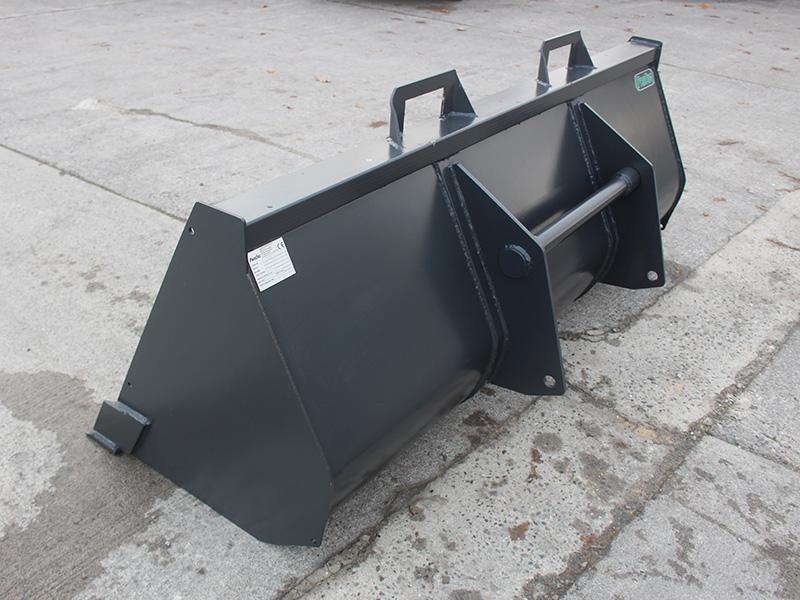

- Weld on hitch brackets on all buckets.
Full Details
- Tele-Handler/Articulated loader buckets available in capacity from 0.8m3 to 1.7m3.
- Designed for general use such as loading, re-handling, etc.
- Manufactured with S355 structural grade plate and 120 x 60 box section.
- Pressed steel curved shell retains less material when emptied.
- 400 grade hardened 150mm x 20mm (GP0.8 & GP1.1) and 200mm x 25mm (GP1.5 & GP1.7)steel cutting edge as standard.
- 10mm straps around shell for superior structural integrity.
- Optional heavy duty version of each model available and also bolt on edge cutting available.
- Max machine lifting capacity: 5000kg
- Weld on hitch brackets on all buckets.
Technical Data
| LOADER BUCKET | ||||
| LOADER BUCKET | GP 0.8 | GP 1.1 | GP 1.5 | GP 1.7 |
| Height (mm) | 920 | 920 | 1000 | 1070 |
| Width (mm) | 1880 | 2370 | 2500 | 2500 |
| Depth (mm) | 940 | 940 | 1060 | 1150 |
| Capacity (m³) | 0.8 (m³) | 1.1 (m³) | 1.5(m³) | 1.7 (m³) |
| Weight (kg) | 295 | 340 | 430 | 475 |
| Shell (mm) | 6 | 6 | 6 | 6 |
| Sides (mm) | 8 | 8 | 8 | 8 |
| Cutting edge | 150×20 | 150×20 | 200×25 | 200×25 |
| Max machine lifting capacity (kg) | 5000 | 5000 | 5000 | 5000 |
All measurements approx. (±5mm, ±5kg),
Weight may differ brackets as these vary,
Please contact us for more accurate spec.
Models
| PRODUCT | PRODUCT CODE |
| Loader Bucket – Tele-Handler 0.8m3 (1.8m) | GP 0.8 |
| Loader Bucket – Tele-Handler 1.1m3 (2.3m) | GP 1.1 |
| Loader Bucket – Tele-Handler 1.5m3 (2.5m) | GP 1.5 |
| Loader Bucket – Tele-Handler 1.7m3 (2.5m) | GP 1.7 |
| Extra over for HD Version of above GP Range | GP-HD |
| Bolt on cutting edge 200x25mm (per meter) | BOCE 200×25 |
| Bolt on cutting edge 250x30mm (per meter) | BOCE 250×30 |
Additional information
ProDig General Propose Loader Bucket
Details
- Tele-Handler/Articulated loader buckets available in capacity from 0.8m3 to 1.7m3.
- Designed for general use such as loading, re-handling, etc.
- Manufactured with S355 structural grade plate and 120 x 60 box section.
- Pressed steel curved shell retains less material when emptied.
- 400 grade hardened 150mm x 20mm (GP0.8 & GP1.1) and 200mm x 25mm (GP1.5 & GP1.7)steel cutting edge as standard.
- 10mm straps around shell for superior structural integrity.
- Optional heavy duty version of each model available and also bolt on edge cutting available.
- Max machine lifting capacity: 5000kg
- Weld on hitch brackets on all buckets.
