ProDig Fork Lift Bag Filler

Details

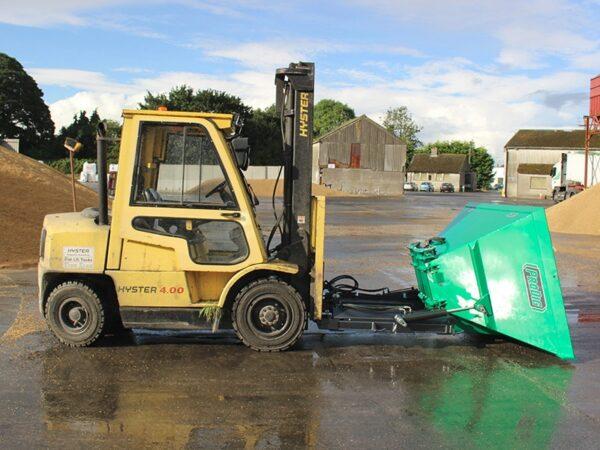

The Prodig Forklift Bag Filler Bucket is a unique attachment to utilise your forklift, to pick up loose free flowing material, fill and move bulk bags which increases productivity and eliminates spillages. This unit can be fitted with load cells allowing it to weigh the material filled into bulk bags.

Full Details

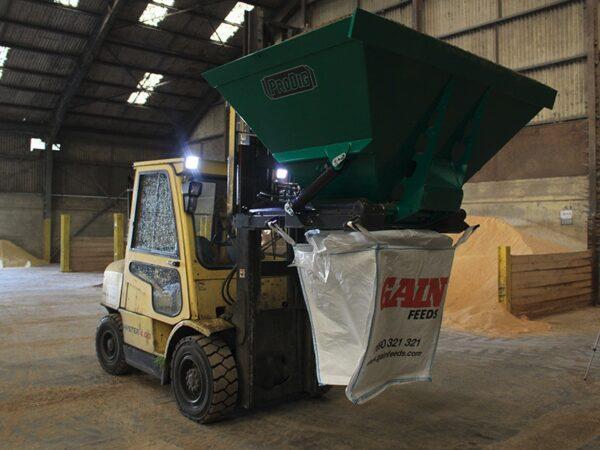

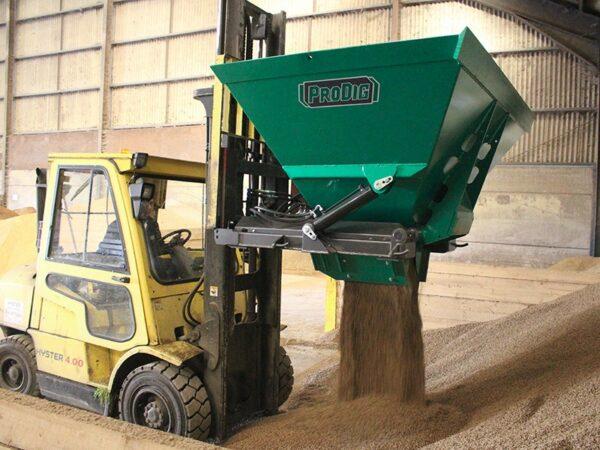

The Prodig Forklift Bag Filler Bucket is a unique attachment to utilise your forklift, to pick up loose free flowing material, fill and move bulk bags which increases productivity and eliminates spillages. This unit can be fitted with load cells allowing it to weigh the material filled into bulk bags. The Forklift Bag Filler is an all-in-one unit used to load loose free flowing material (Seed, Ration, Fertilizer etc.) into a hopper, weigh the material and fill it in to a bulk bag ready for sale or distribution. This is all carried out from a single unit mounted on the front of a standard forklift. This unit dramatically speeds up the operation of filling bulk bags, it allows smaller businesses to supply material in bulk bag format without the need for a bagging plant, telehandler, wheeled loader or weighbridge.

· Available in 0.6m³, 1.0m³ & 1.4m³ capacity to suit different size bags.

· Designed to fill various types of loose free flowing materials into bulk bags with ease using your forklift.

· Economical one-person operation to fill and move bags with your forklift.

· Multiple options for weigh load systems, including display only, in cab Bluetooth display & receipt printer.

· Hardened steel 150mm x 20mm cutting edge with wear strips on bucket and carriage floor.

Features

  1. Integrated weigh load system and diverter valves options.
  2. All surfaces are angled to prevent material for sitting on top.
  3. Tipping rams fitted with soft close cushioning.
  4. Buffer pads on carriage to soften the closing impact.
  5. Heavy duty 20mm doors on hopper.

Technical Data

FORKLIFT BAGFILLERFBF600FBF1000FBF1400
BUCKET
Height (mm)7609601080
Width (mm)170020202260
Depth (mm)144015501650
Weight (kg)555670760
Capacity (m³)0.611.4
Shell(mm)888
Cutting edge (mm)150×20150×20150×20
heel Cutting edge (mm)150×20150×20150×20
base wear plate (mm)150×16150×16150×16
base Channel plate (mm)666
tipping Ram2x70mm Bore2x70mm Bore2x70mm Bore
Door Ram1x50mm Bore1x50mm Bore1x50mm Bore
main pin (mm)404040

All measurements approx (±5mm, ±5kg)
Weight excludes brackets as these vary
