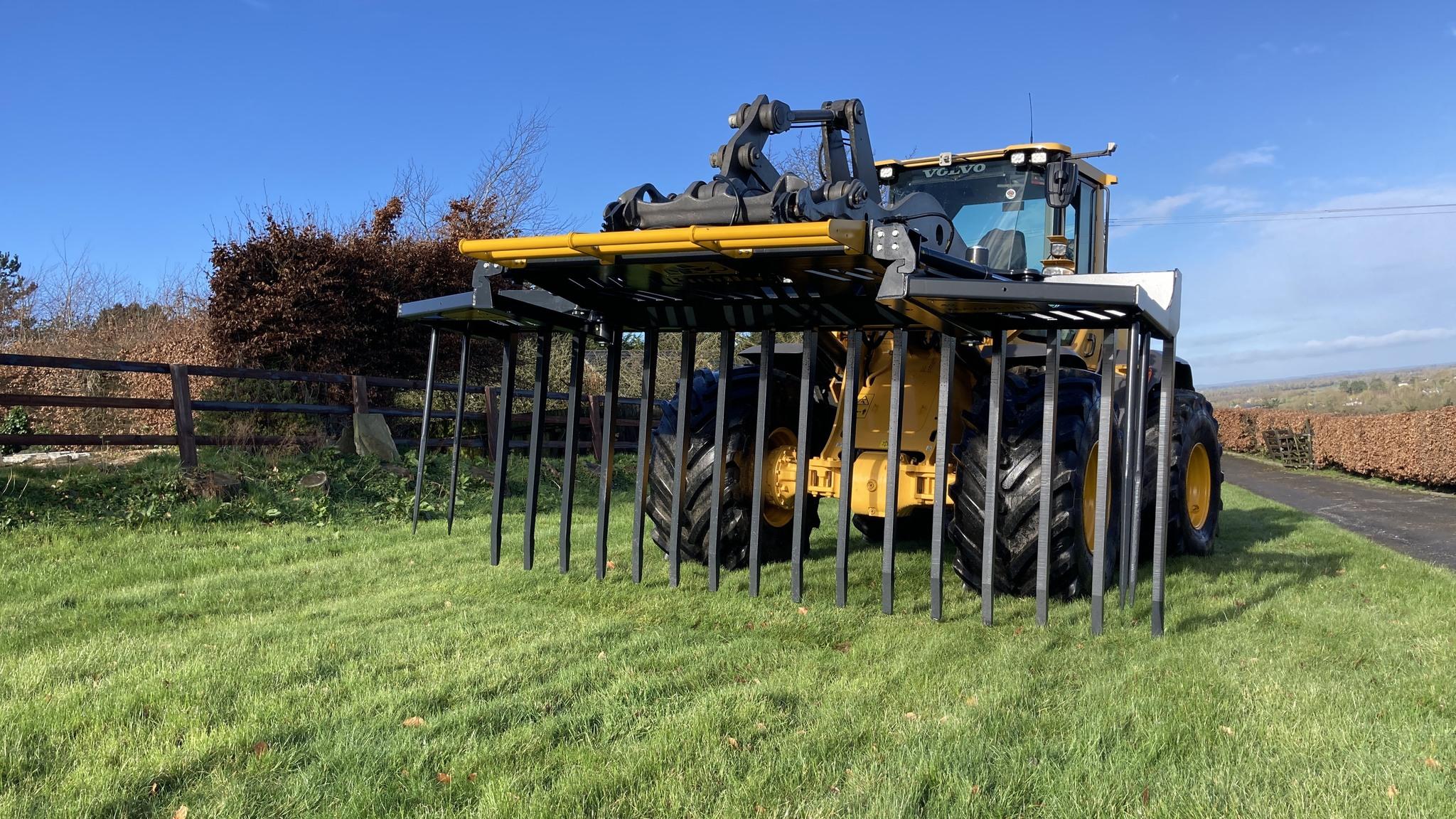

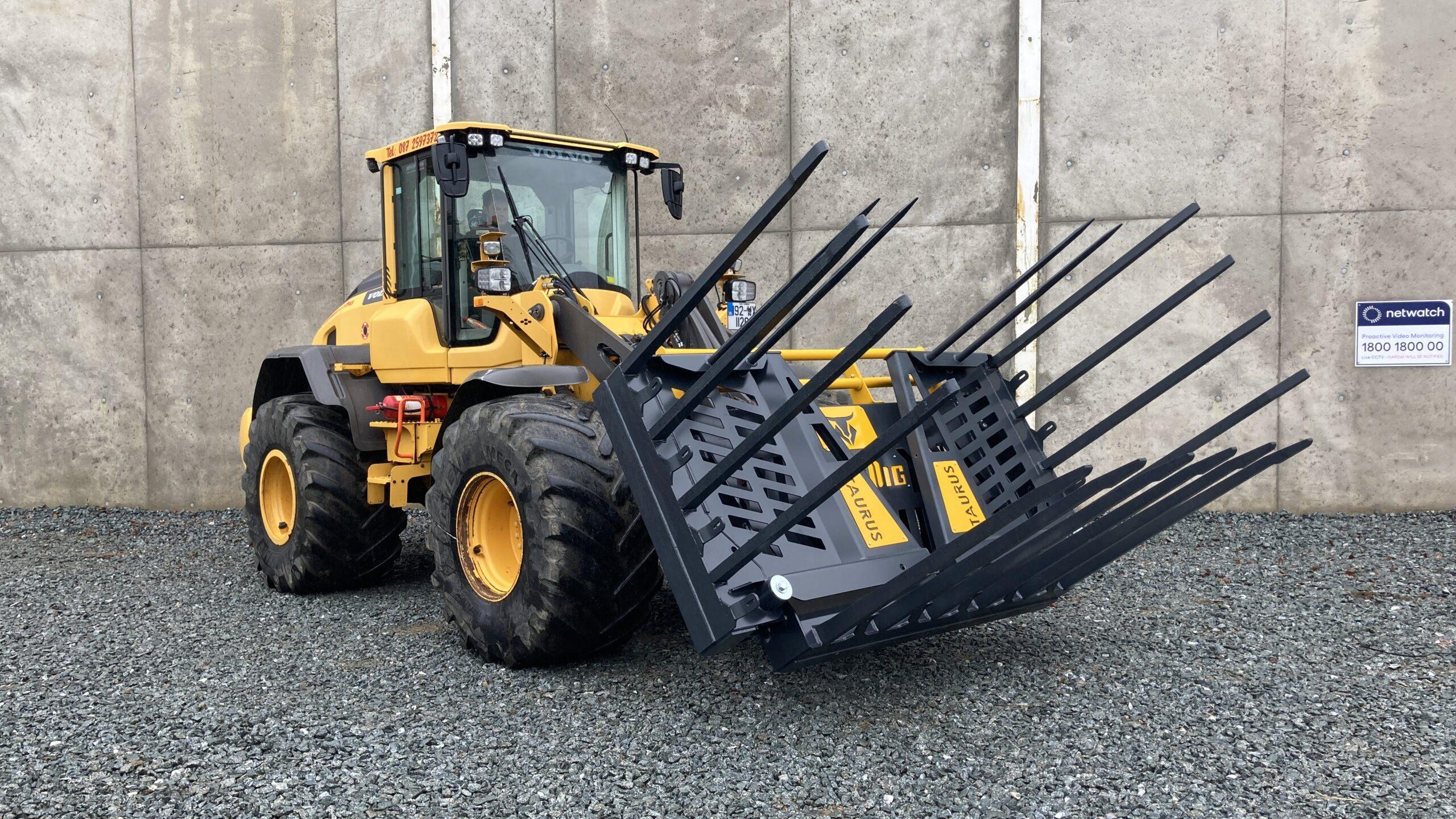

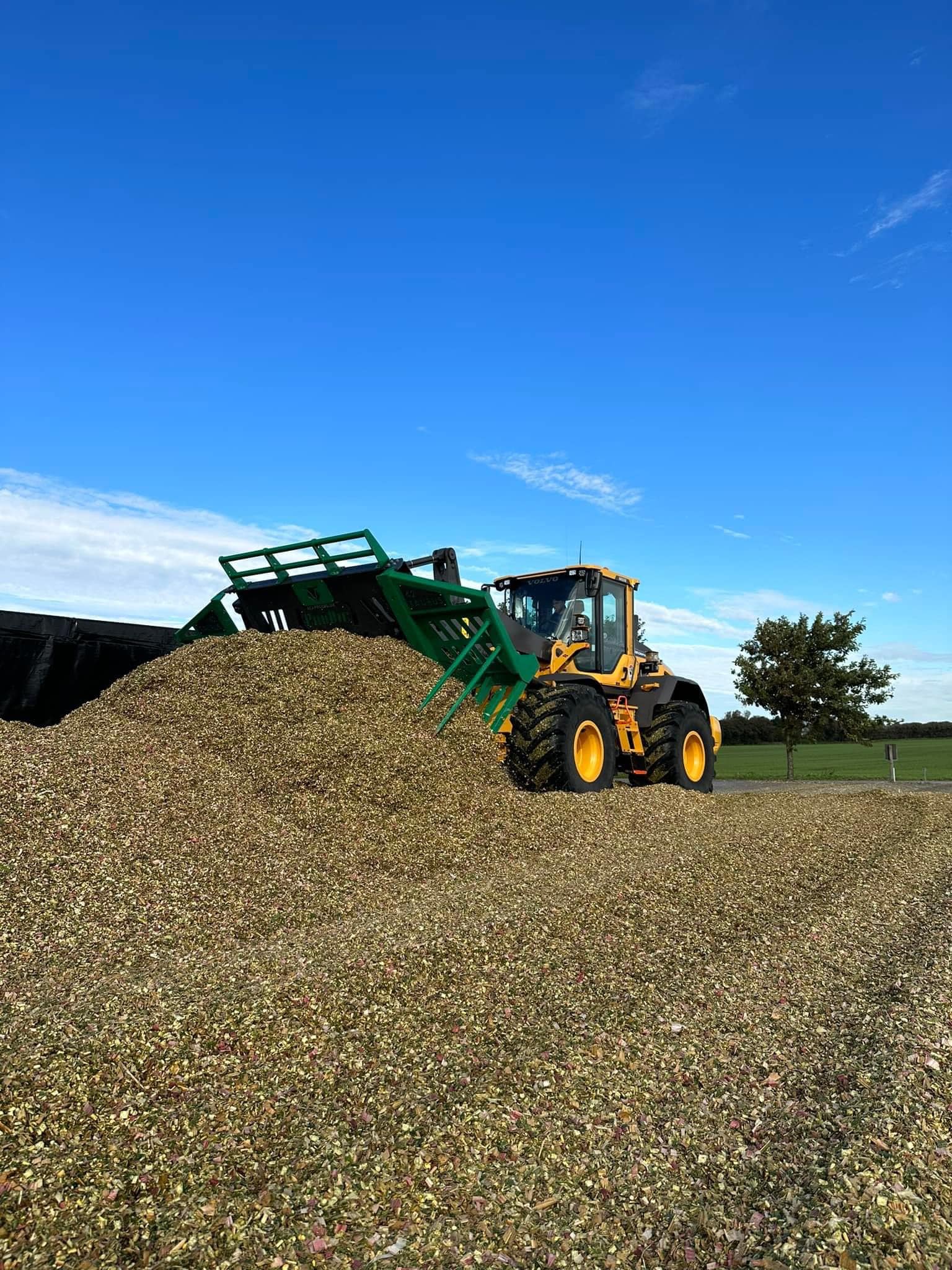

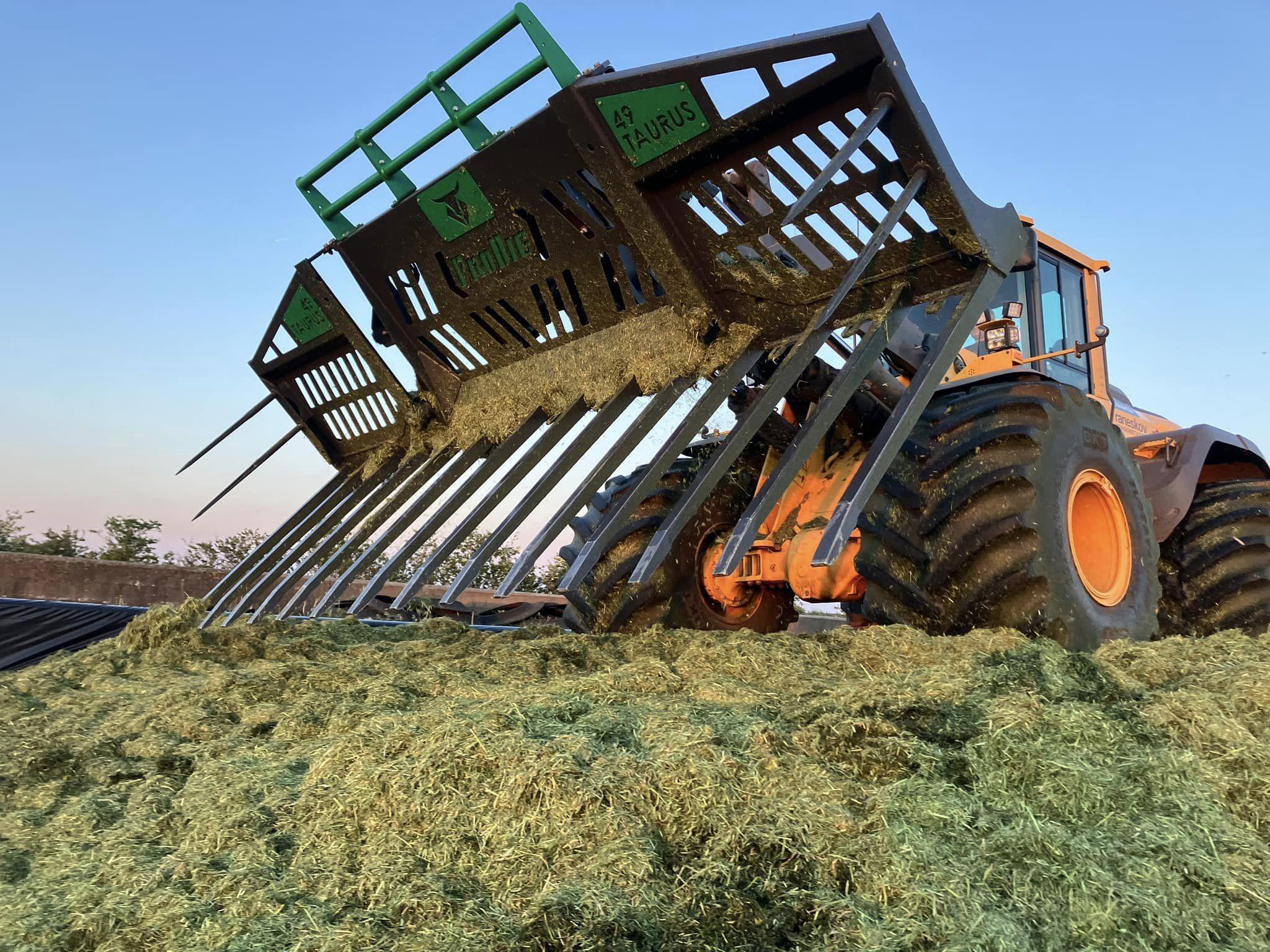

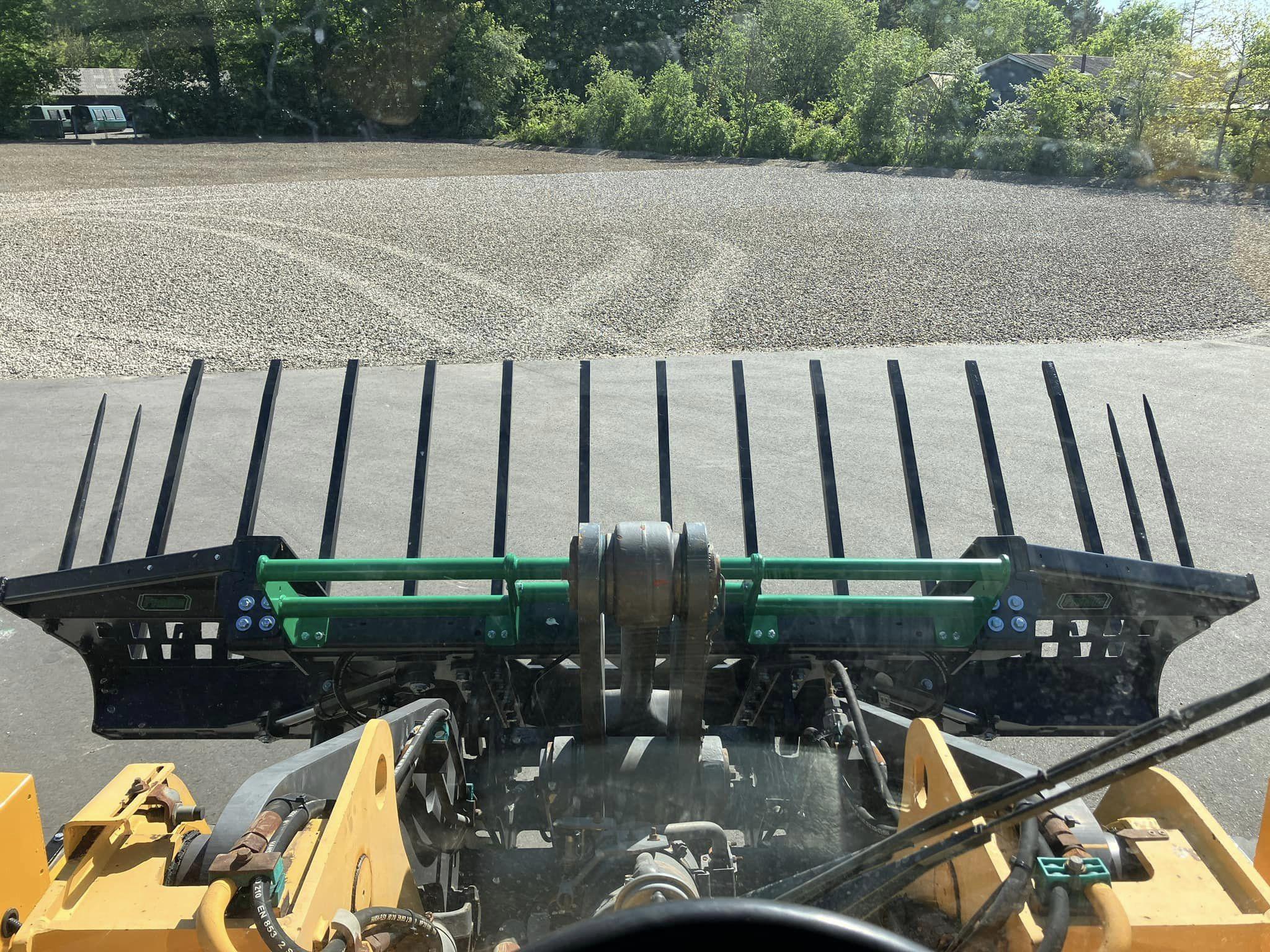

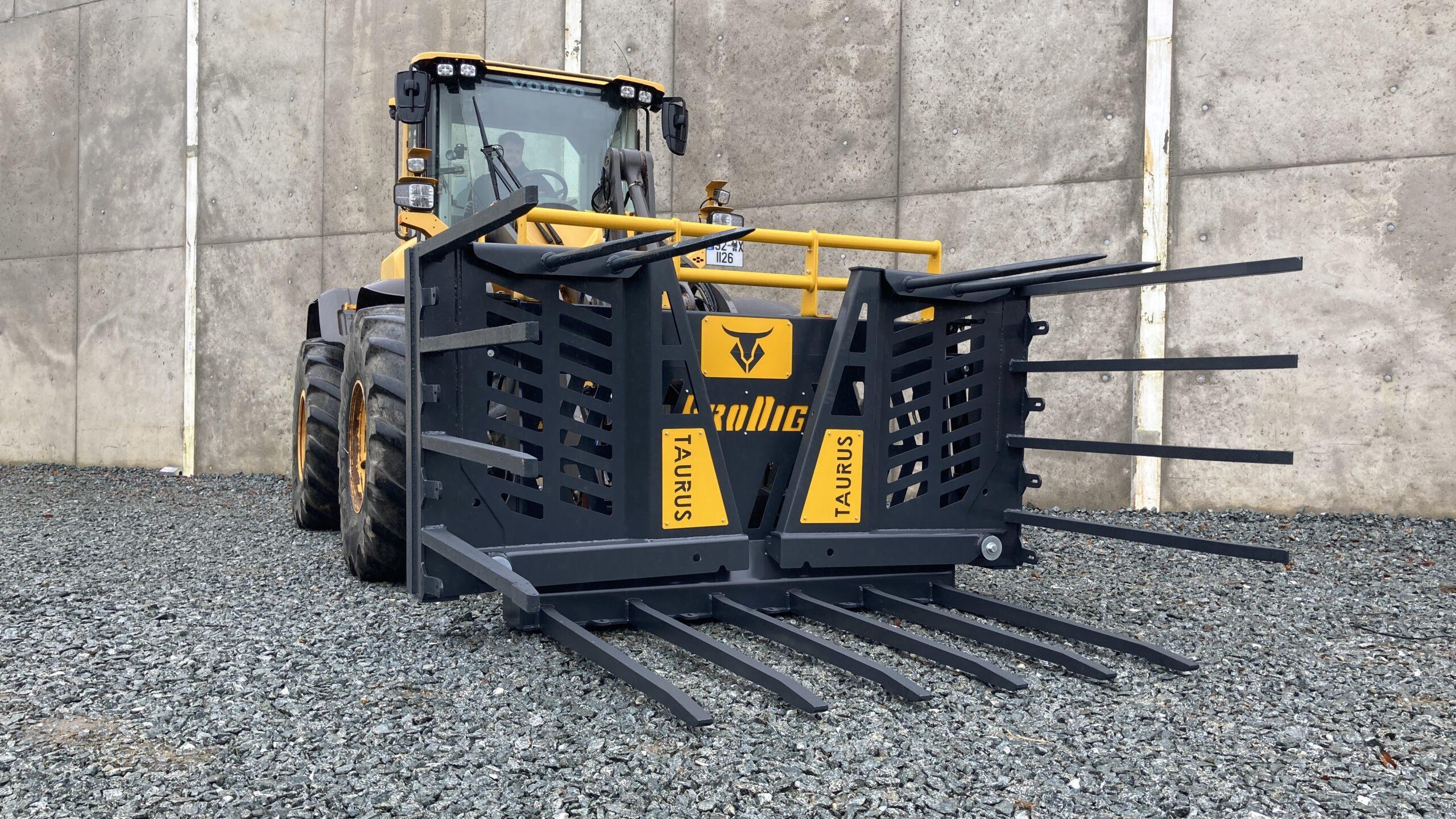

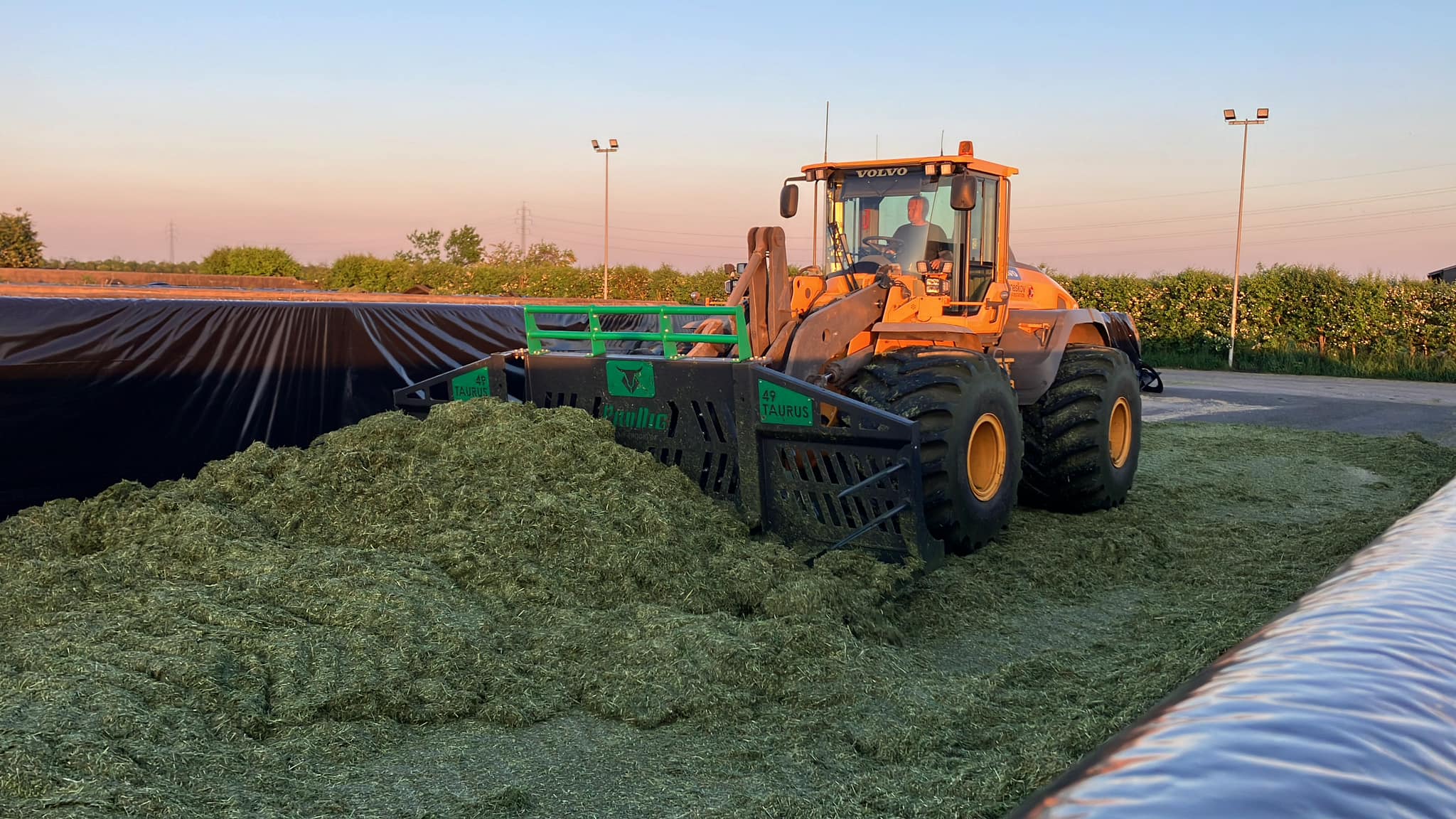

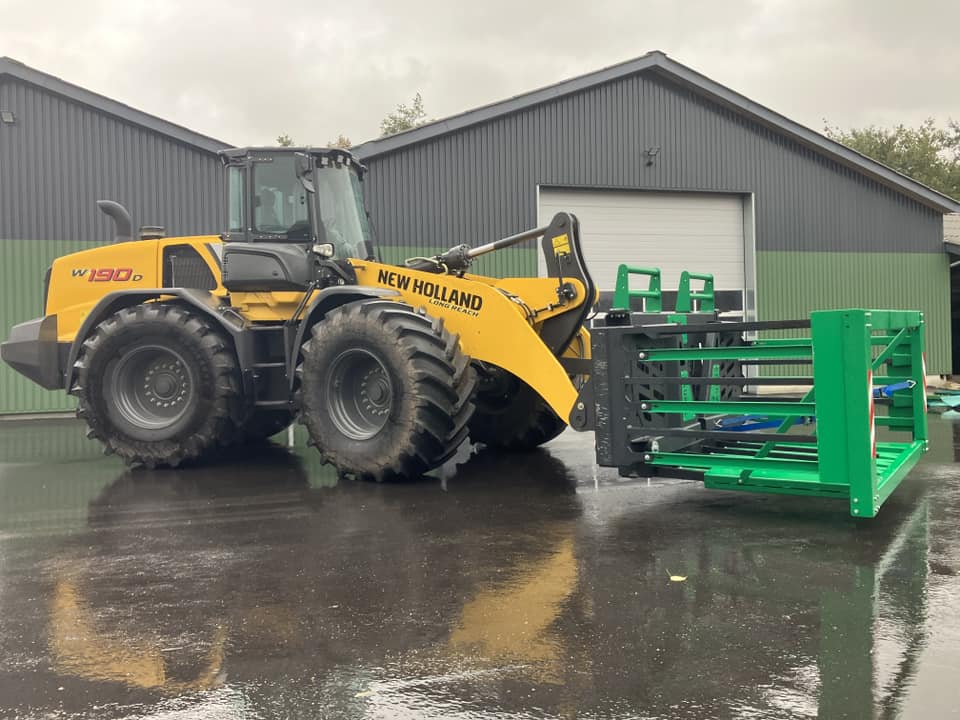

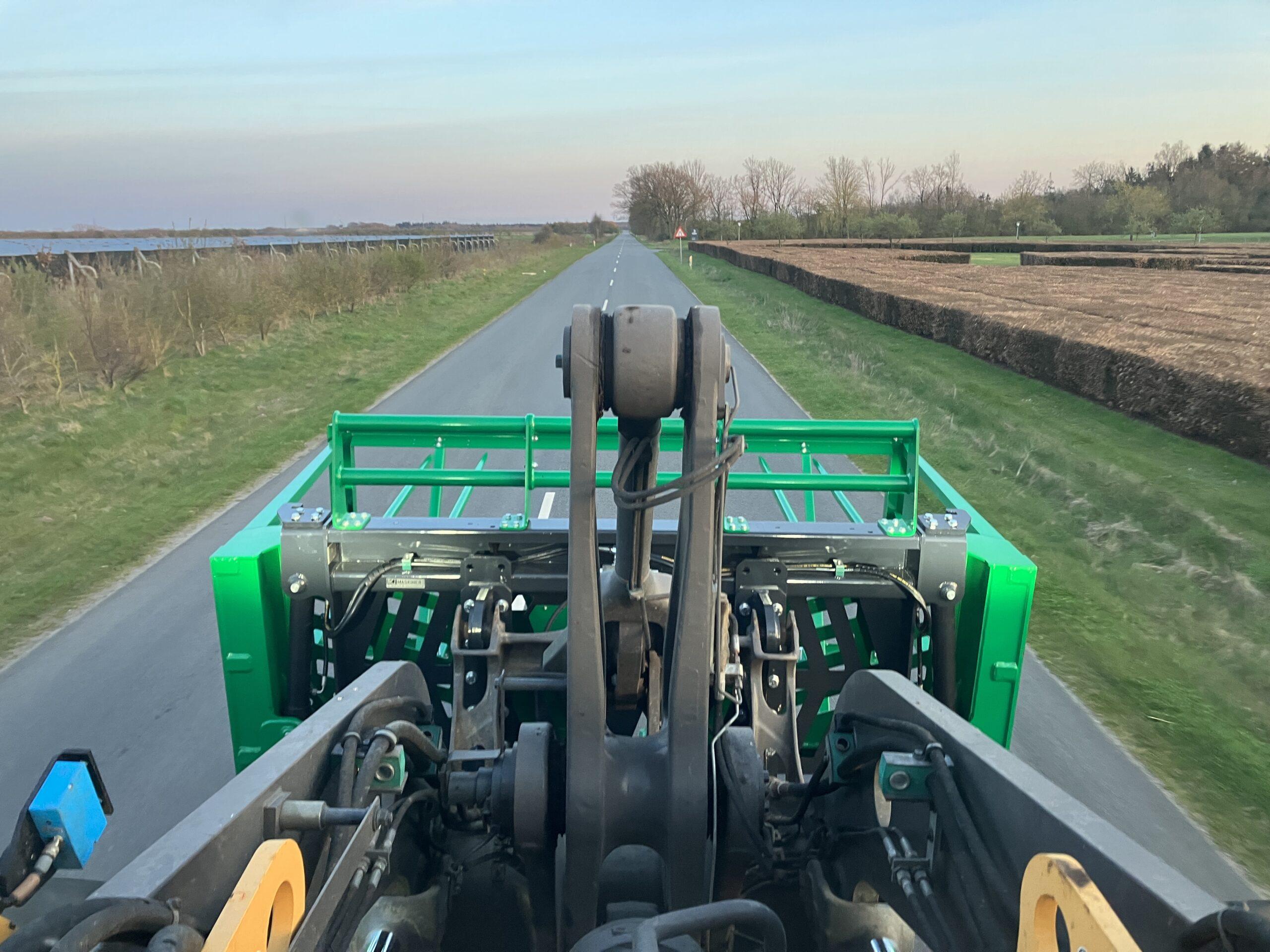

This machine has been specifically designed to move loose free flowing grass, silage, maize and other feeding/ crop material being stored in a pit. The folding function allow the fork to reduce in size for transport reasons and unfold to handle the increased output from a new generation of high capacity silage harvesters/ trailer in conjunction with large wheeled loaders.

Our fork is designed in two model types: Mammoth and Taurus.

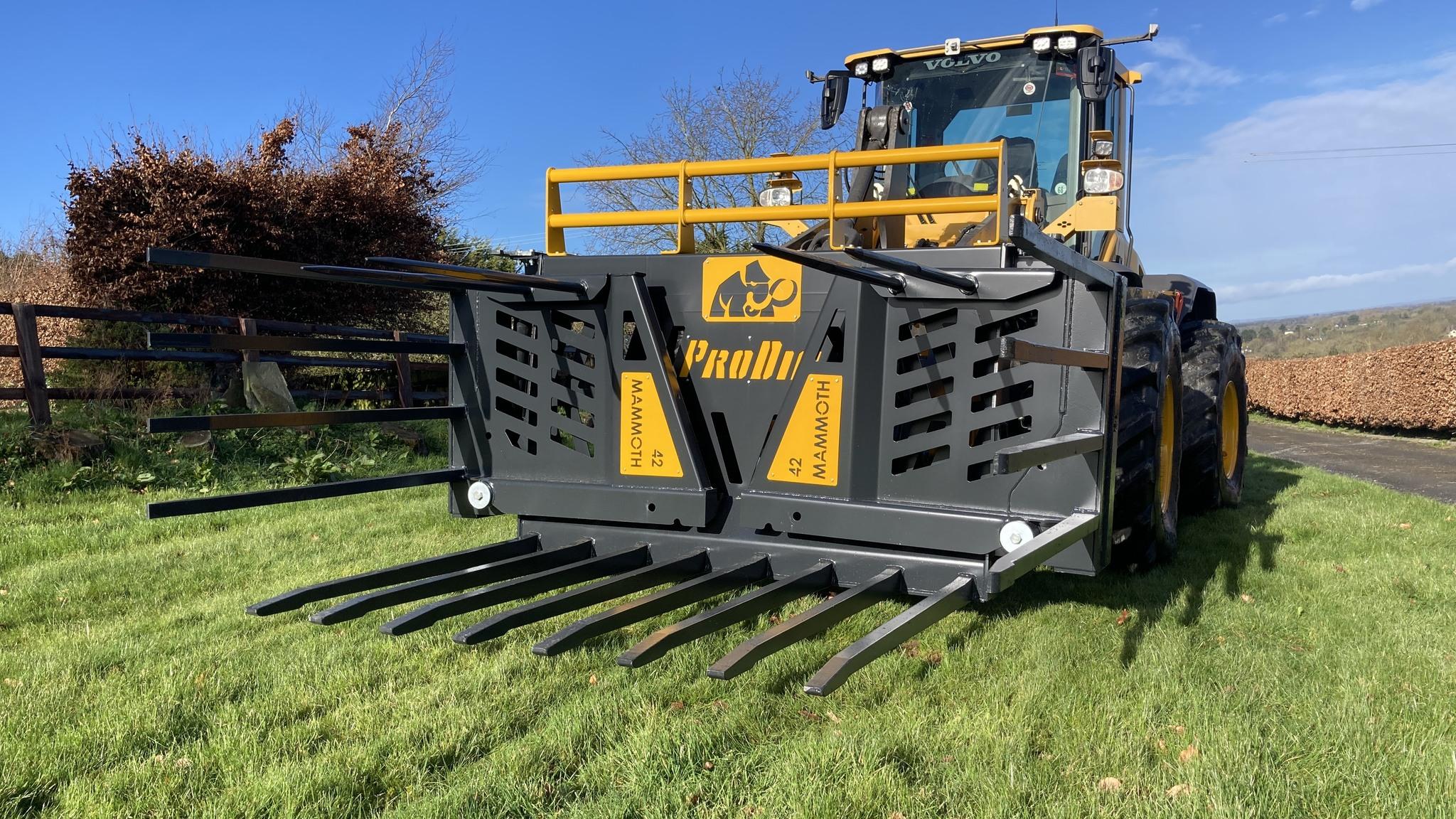

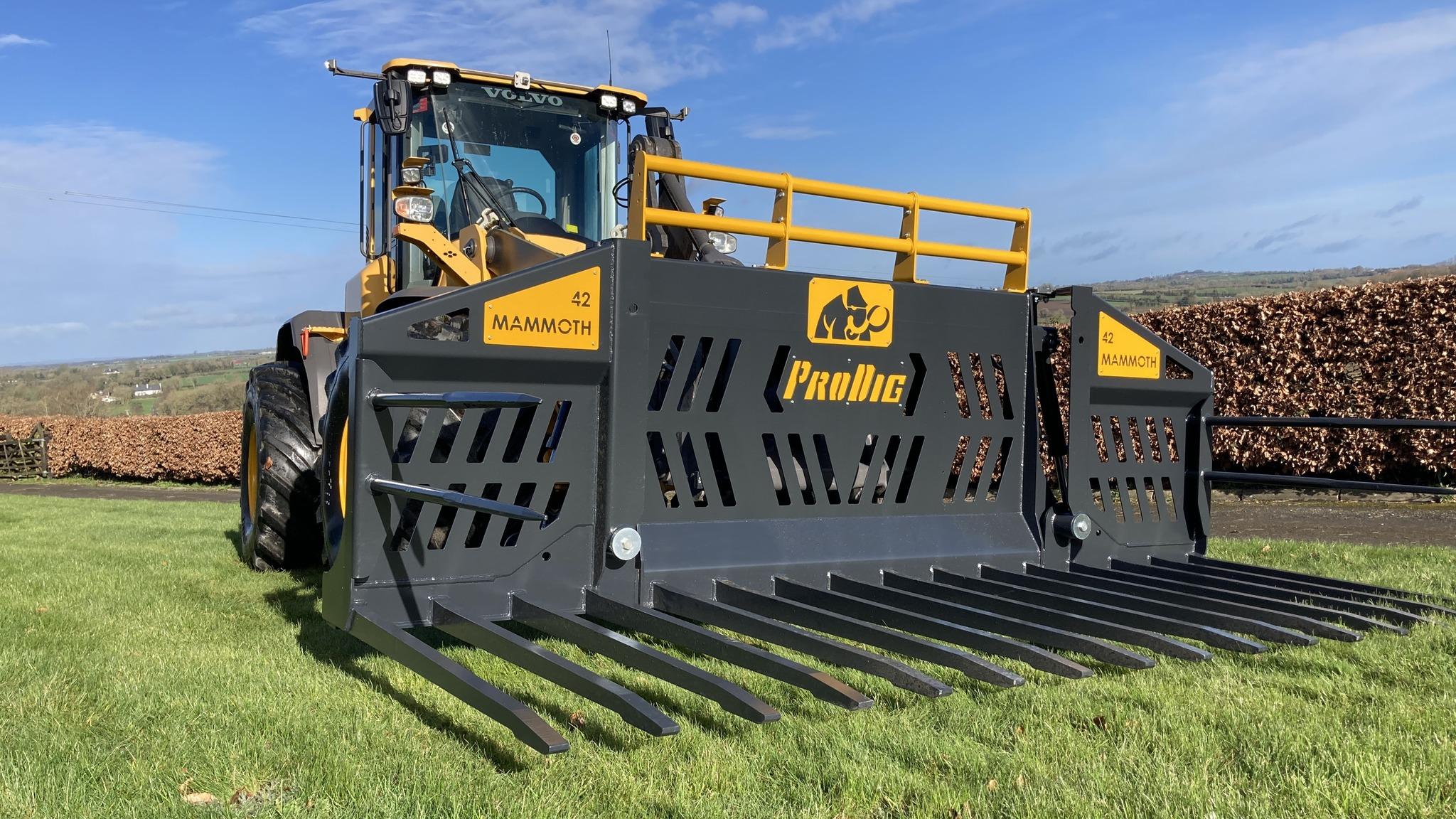

• The Mammoth range is designed as an all-round fork with standard fork spacing to suit wetter grass conditions. Mammoth tine spacing 227mm (277mm centres).

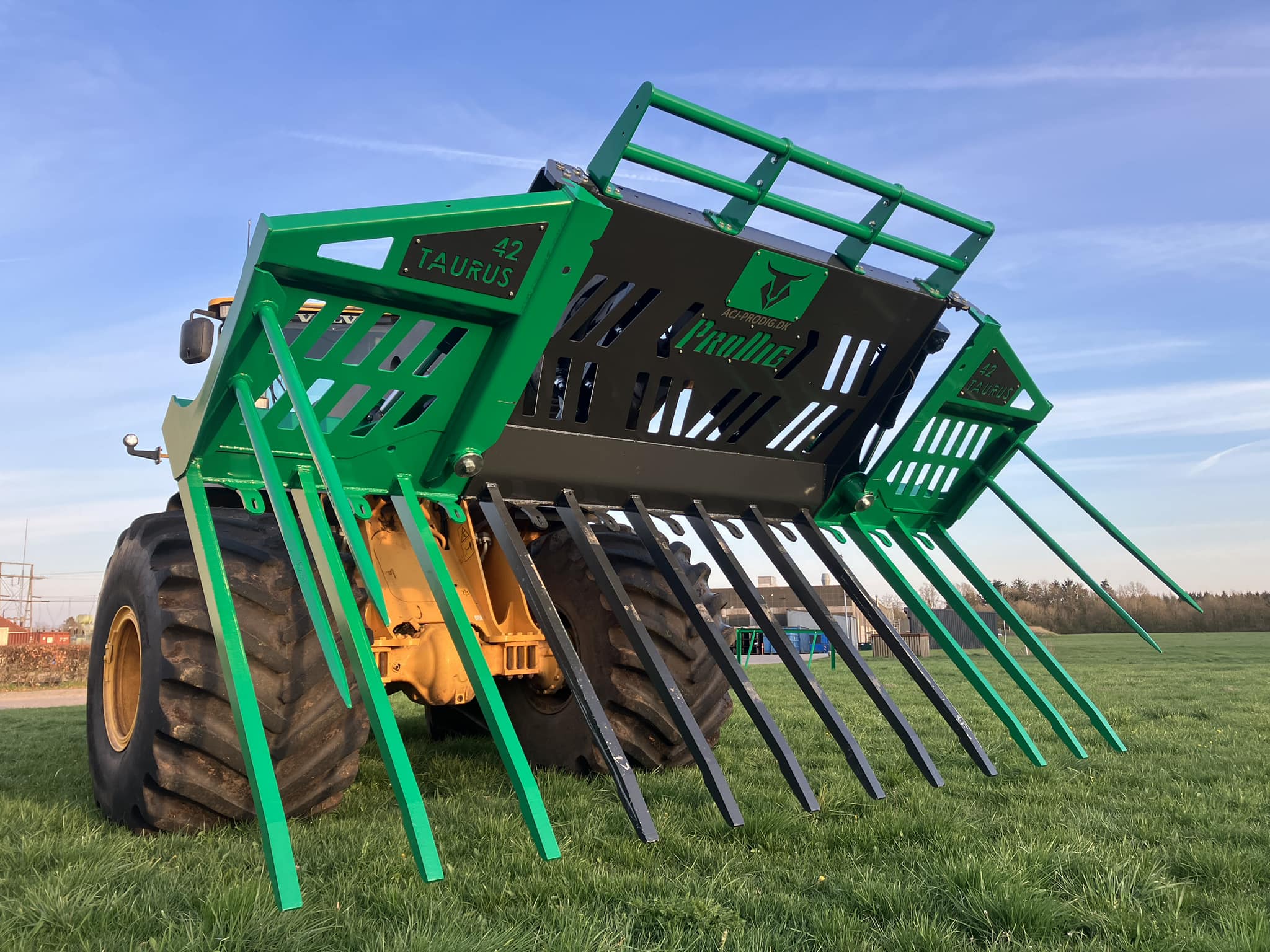

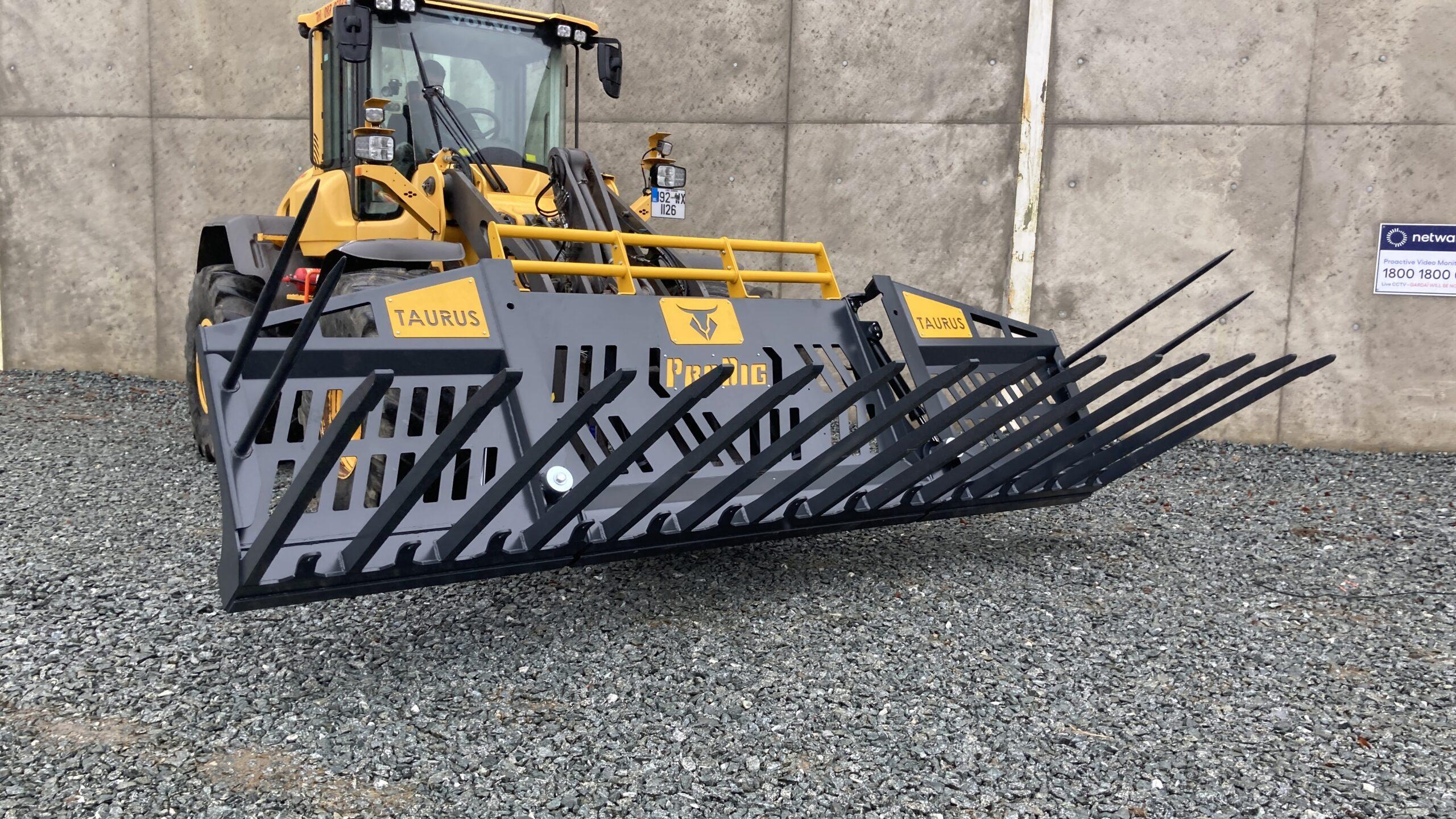

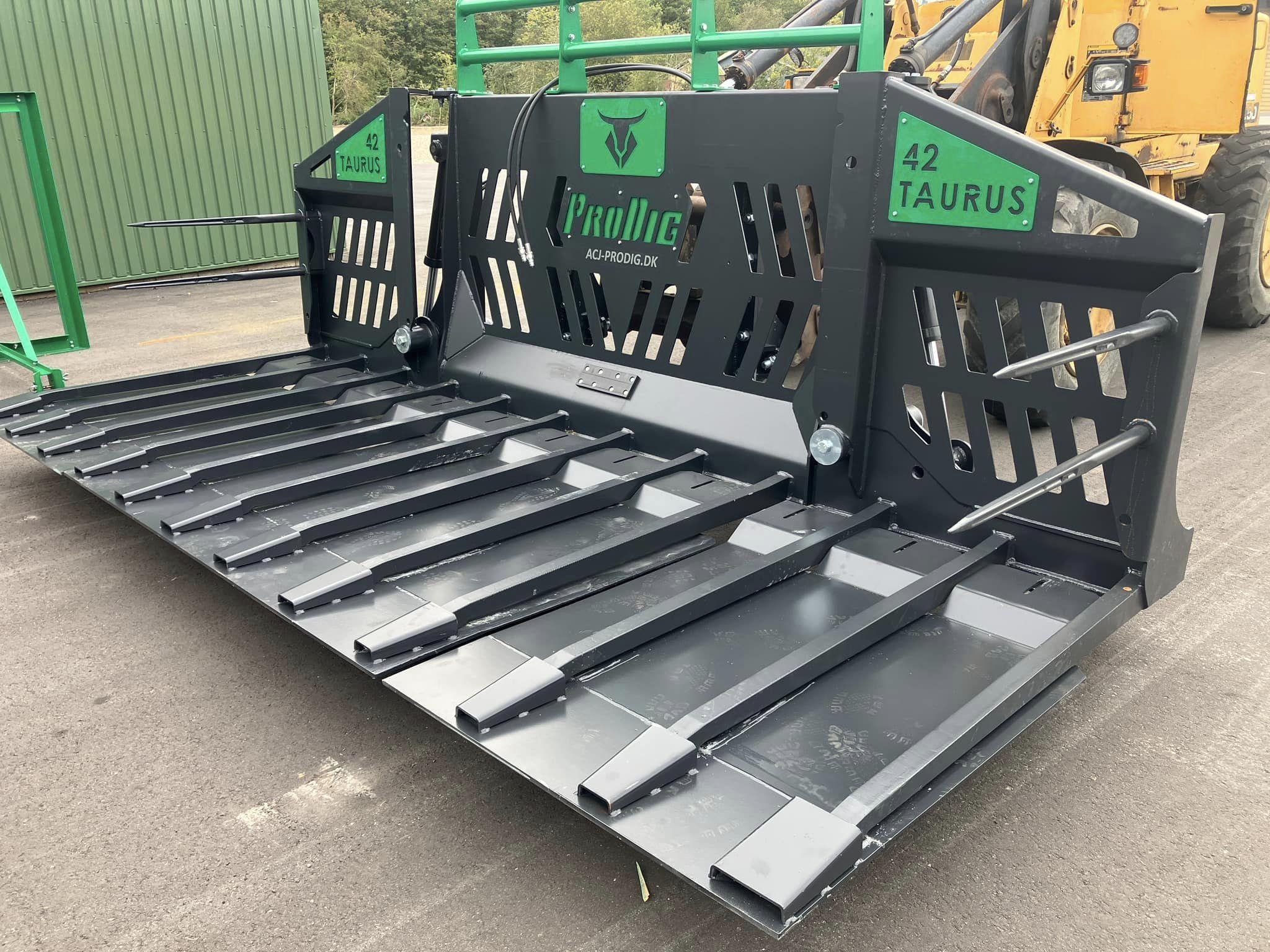

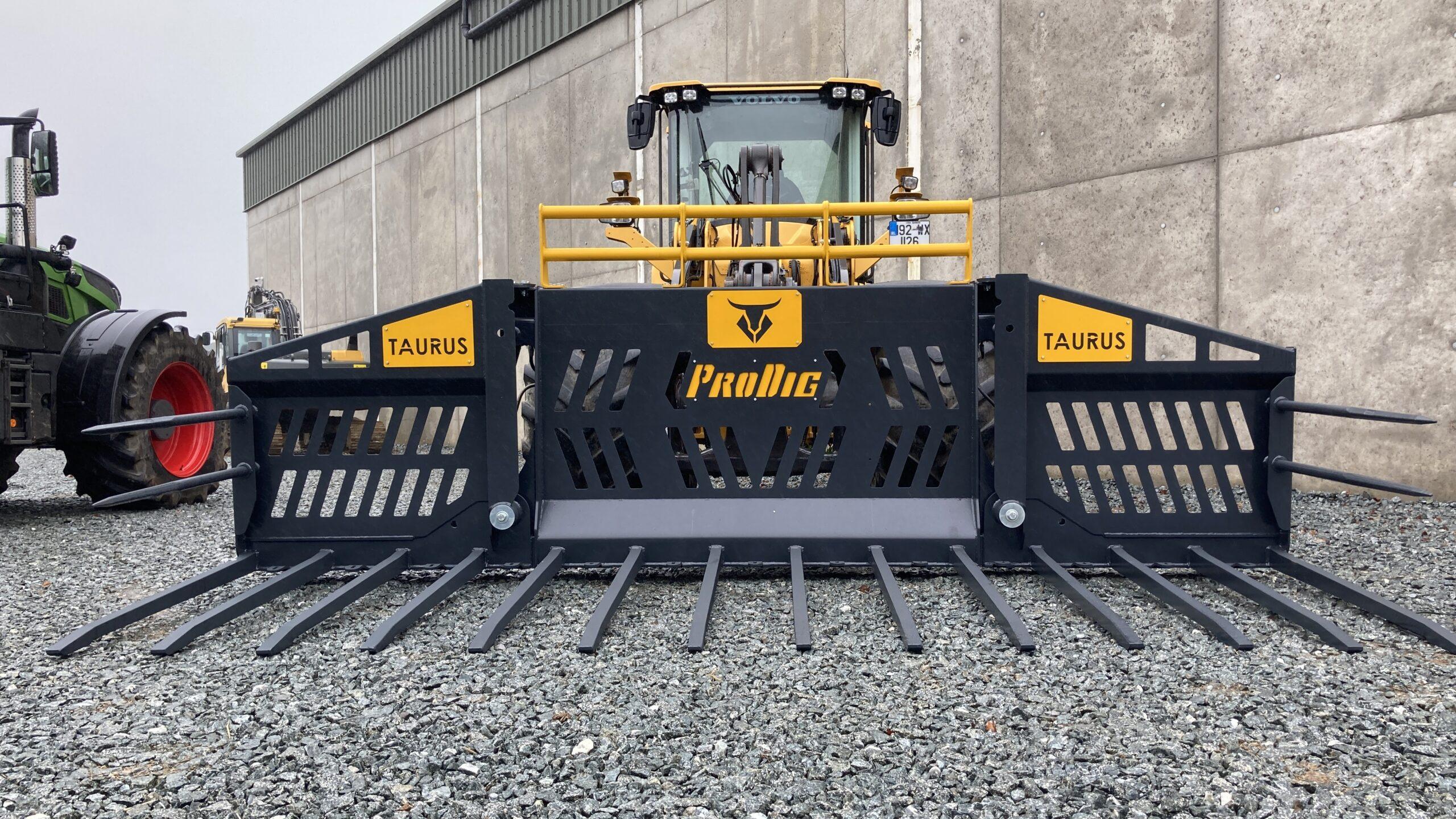

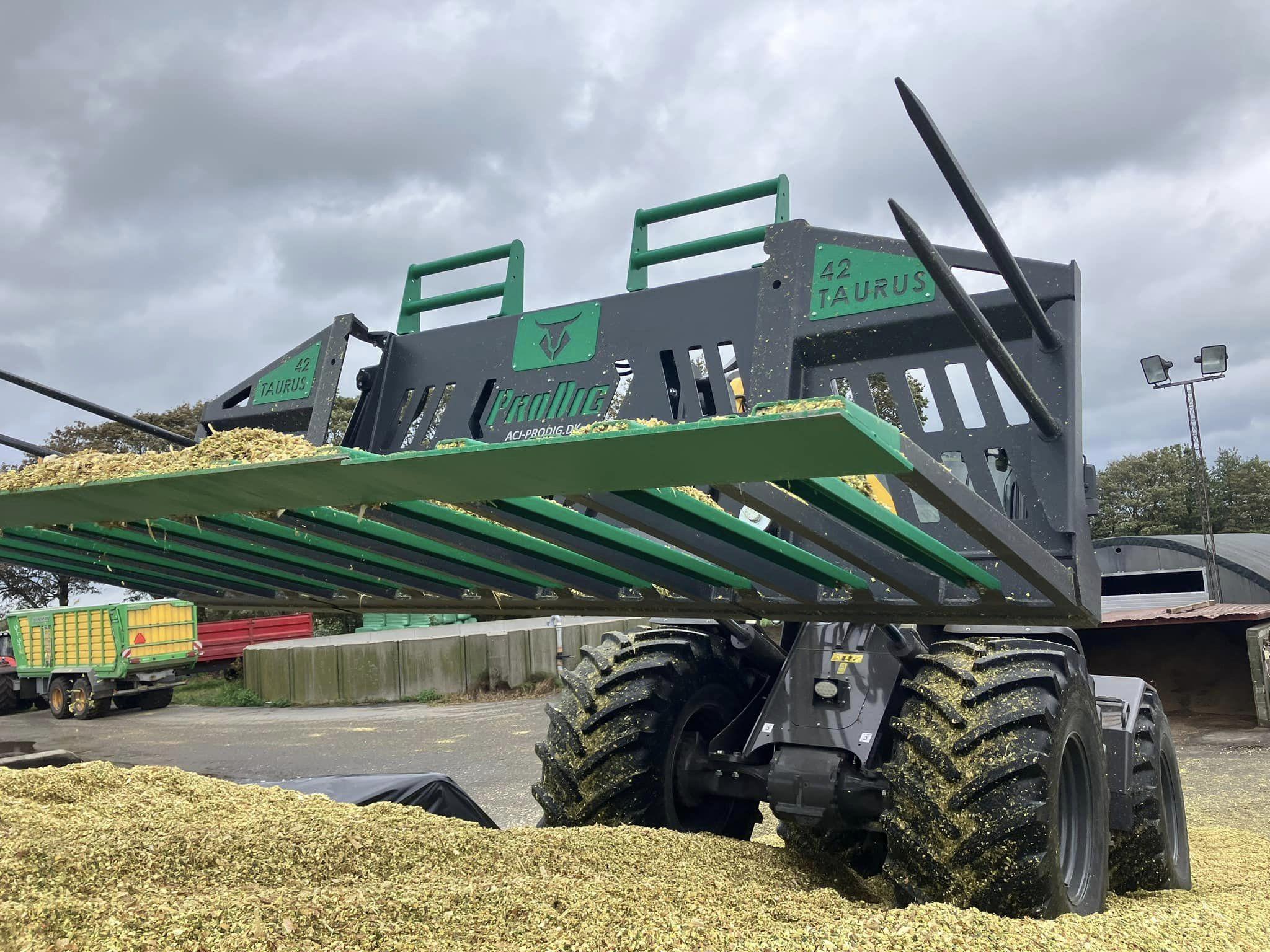

• The Taurus range is specified designed with increased tine spacing for continental conditions with longer drier grass and large quantities of maize silage. The wide tine spacing helps longer, dryer grass silage to flow through the fork, making it easier to disperse on the pit. During maize season, the fork can then be fitted with a bolt on maize blade and tine infills which allows the fork to carry, disperse and level maize silage with ease (Taurus range only). Taurus tine spacing 328mm (378mm centres).

Both models types are available in widths of 3600mm, 4200mm, 4900mm and 5500mm with 50mm Hardox tines used in bottom bar, available in 1524mm, 1828mm or 2100mm tine lengths (1828mm as standard).

As standard the fork is fitted with:

• Bolt on hitch system to suit all machines.
• Three part bolt on / removable top frame.
• Removable double side tines.
• Profiled wear tips on 50mm tines.
• Adjustable top wing locking system for added strength and support during use.
• Check valve on hydraulic cylinder for increased safety to prevent the wing accidently lowering during transport or in the event of hose failure. This also prevents the wings from folding up when back grading the pit and ensure pressure remains holding the wings open.
• Hydraulic cushioning on both ends of the hydraulic cylinder for increased operator comfort.
• Rubber buffers on closed position.

Optional extras:

• Work lighting kit (no:2 LED work lights) (suits both Mammoth & Taurus models).

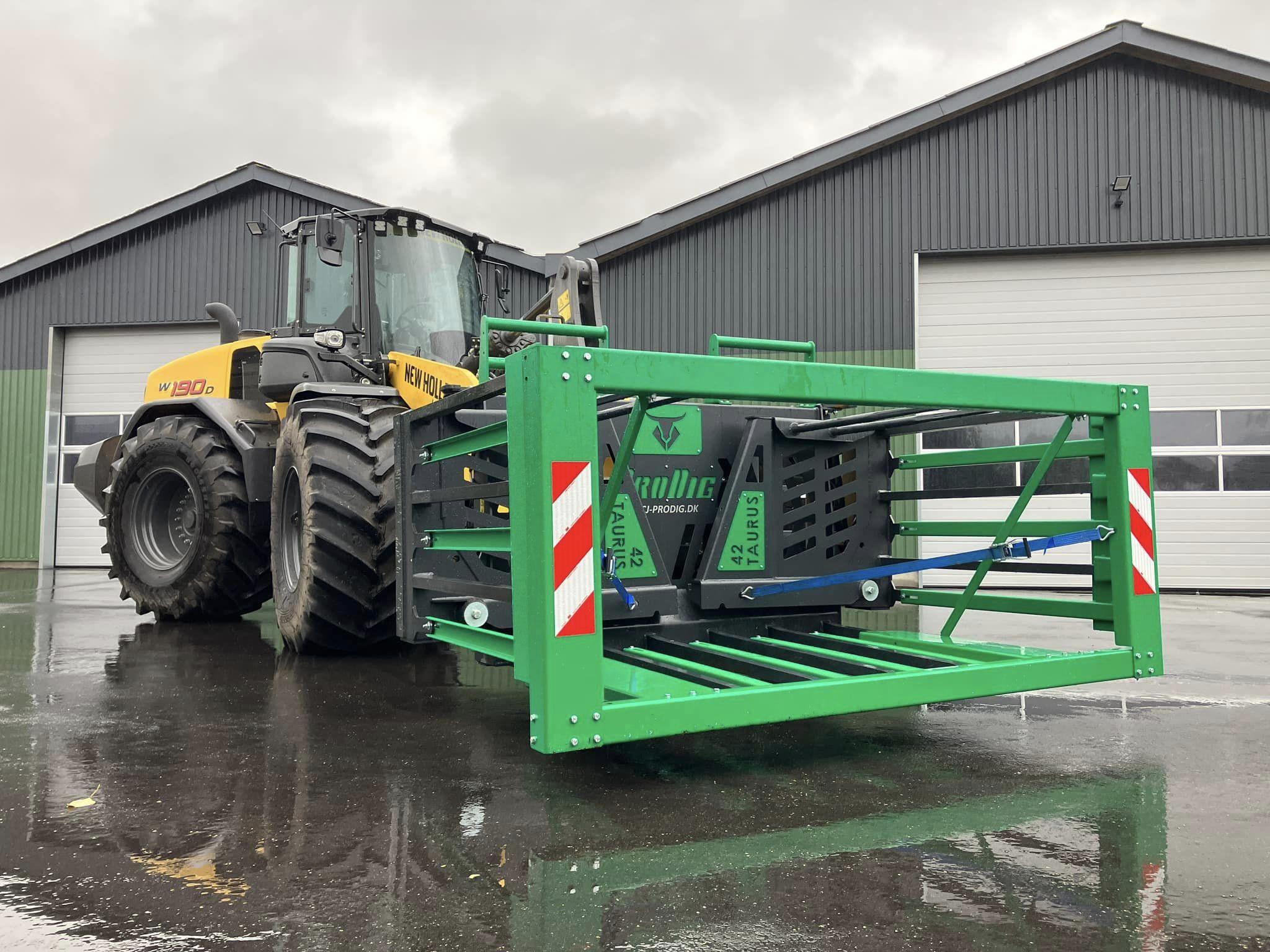

• Transport tine guard (suits both Mammoth & Taurus models).
• Flow divider valve to ensure wing move simultaneously (suits both Mammoth & Taurus models).
• Pressure relief valve for loaders over 200 BAR (suits both Mammoth & Taurus models).

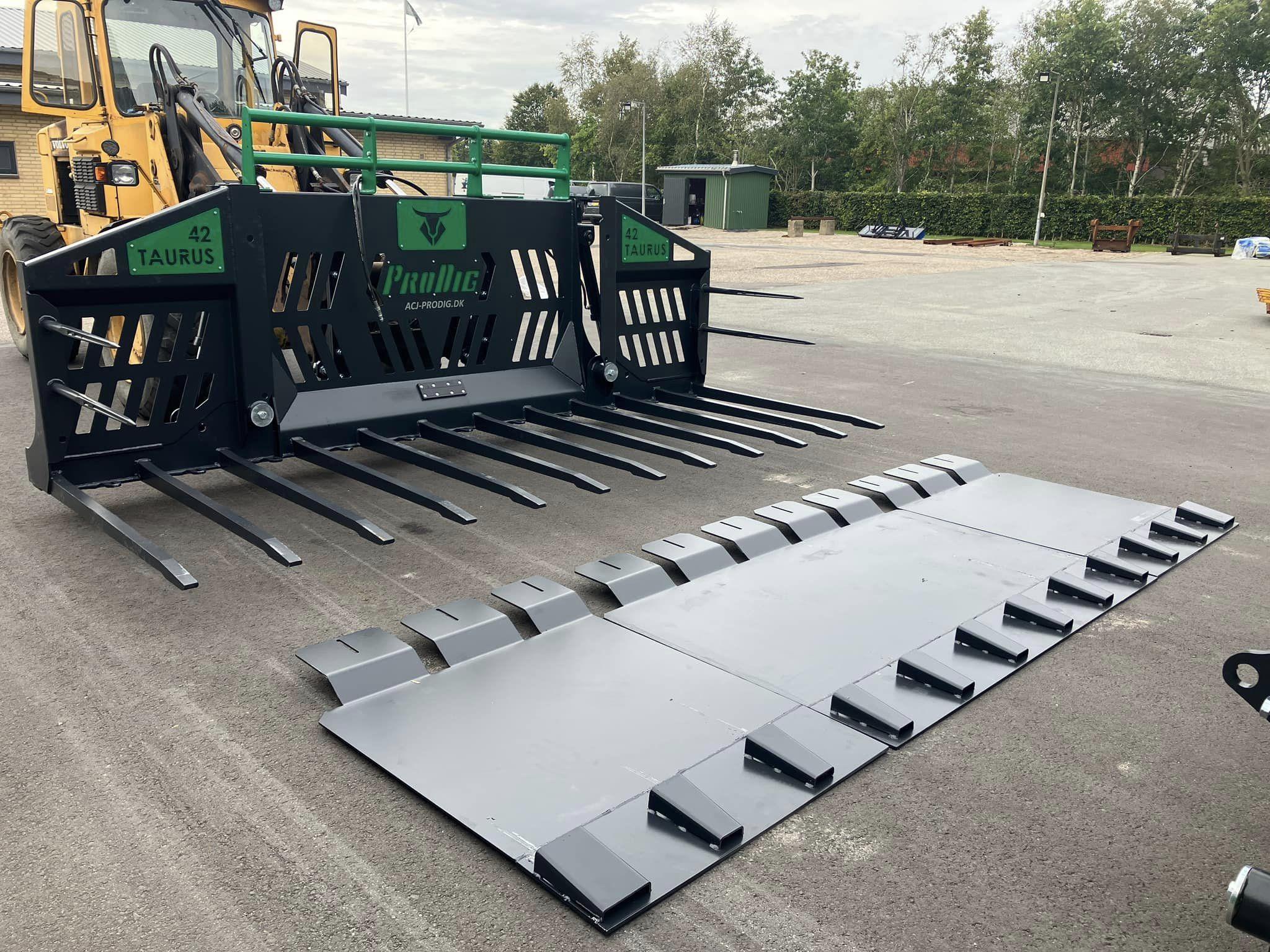

• Maize blade to reduce tine spacing from 328mm to 124mm (Taurus models only).
• Full maize blade to infill tine spacing (Taurus models only).

Technical Data

All measurements approx (±5mm, ±5kg), Bracket weights vary
*Machines operating above 200 BAR will require a pressure relief valve
**This information depends on the type of silage and serves as guidance only.

Models

Extras

Work Lighting Kit (2 LED work lights)

Standard maize blade

Full bottom maize blade

Tine Guard
