ProDig Bale Stacker
Details

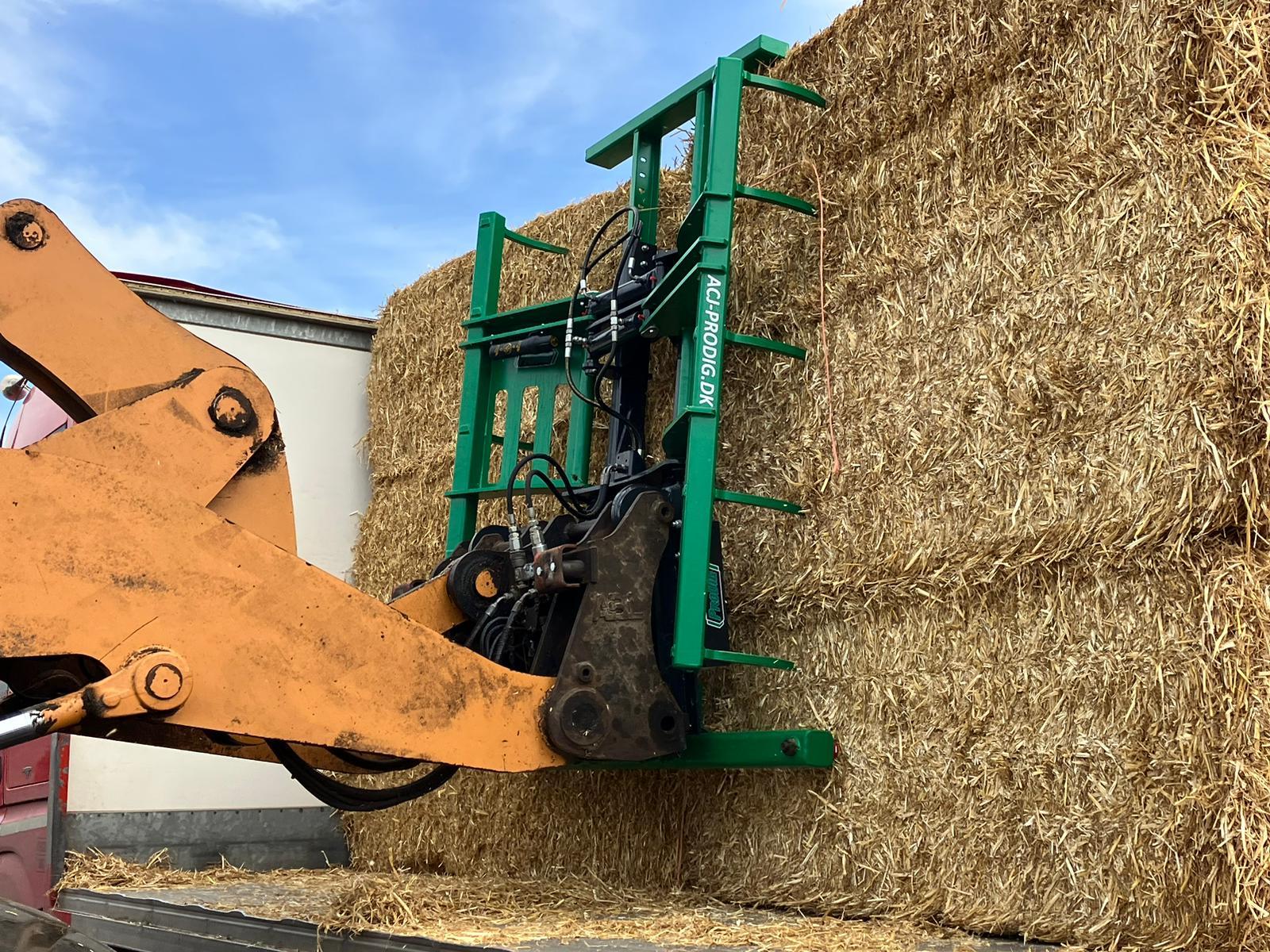

The Prodig Bale Stacker is an attachment designed to increase efficiency when handling large numbers of round and square bales with units available to suit Tractor Loader or Tele-Handler/Articulated Loader.
Full Details
The Prodig Bale Stacker is an attachment designed to increase efficiency when handling large numbers of round and square bales with units available to suit Tractor Loader or Tele-Handler/Articulated Loader.
- Hydraulic grab for moving and stacking large square and round bales.
- Removable bottom tine bar which can be floating, or fixed, up or down as standard.
- Curved tines in arm spaced to catch all bale types.
- Double hydraulic ram system with no troublesome linkage bars.
- Fitted as standard- Adjustable pressure relief valve to reduce damage to bales from over gripping
- Top push bar with height adjustment to stabilize the stack when retracting bottom tines.
- Heavy duty construction using structural grade box section and plate throughout.
- Available with bolt on hitch system to suit all machines.
- All hinge points fitted with greasable bushings.
- Unique locking system on bottom bar allows it to be removed in seconds with no tools required.
- Arms made with plate section for a stiffer frame.
- Bolt on hitches available to fit all machines.
Technical Data
| Bale Stacker | C320 | C430 |
| Height (mm) | 2088 | 2753 |
| Width (mm) | 1840 when opened | 1840 when opened |
| Depth (mm) | 700 when closed | 700 when closed |
| Capacity | 3(3′) rectangular bales or 2 round bales | 4 (3′) rectangular bales or 3 round bales |
| Weight (kg) | 561 including bottom bar | 645 including bottom bar |
| 456 excluding bottom bar | 537 excluding bottom bar | |
| Number of cylinders x Diameter (mm) | 2x70mm Bore, 40mm Rod | 2x70mm Bore, 40mm Rod |
| Bottom Tine length (mm) | 990 (39”) | 990 (39”) |
| Arm Tine length (mm) | 410 | 410 |
All measurements approx (±5mm, ±5kg), Weight excludes brackets as these vary.
*Machines operating above 200 BAR will require a pressure relief valve.
Models
| PRODUCT | PRODUCT CODE |
| Bale Stacker (3-Square 2-Round) | C320 |
| Bale Stacker (4-Square 3-Round) | C430 |
| Tractor Bolt on Brackets | TBB 100 |
| Industrial Bolt on Brackets | IDBB 100 |
| C320-C430 – Bottom Bar Hydraulic Fold Up System | C320-C430-FUS-01 |
Extras
C320-C430 – Bottom Bar Hydraulic Fold Up System
